View larger
Images are for illustrative purposes only. Please refer to data sheet for details

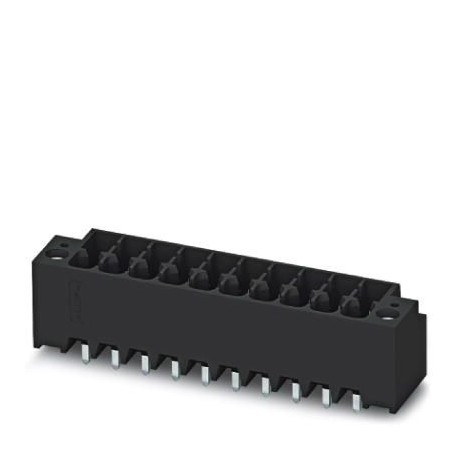

DMCV 1,5/20-G1F-3,5-LR P26THRR 1715097 PHOENIX CONTACT Printed-circuit board connector
DMCV 1,5/20-G1F-3,5-LR P26THRR
1715097
PHOENIX CONTACT
180 Pcs.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Male, Number of potentials: 40, Number of rows: 2, Number of poles per row: 20, number of connections: 40, family of articles: DMCV 1.5/.. -G1F-THR, pitch: 3.5 mm, mounting: Weld THR, pin arrangement: Linear pin arrangement, pin length [P]: 26 mm, Stecksystem: MINI COMBICON - DFMC 1.5, Locking: Snap lock, packaging type: 104 mm wide strap
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 10.6 mm |
|---|---|
| Width | 77 mm |
| Pitch | 3.5 mm |
| Dimension a | 66.5 mm |
| Width [ w ] | 77 mm |
| Height [ h ] | 12 mm |
| Height | 10 mm |
| Length of the solder pin | 26 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Pin spacing | 5.50 mm |
| Length | 10.6 mm |
General
| Range of articles | DMCV 1,5/..-G1F-THR |
|---|---|
| Insulating material group | IIIa |
| Rated voltage (III/2) | 160 V |
| Nominal current IN | 8 A |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 20 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
