View larger
Images are for illustrative purposes only. Please refer to data sheet for details

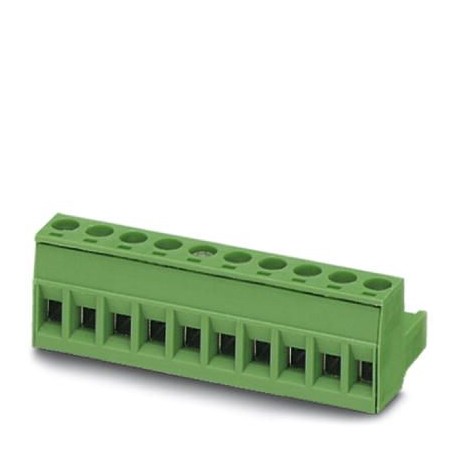

MSTB 2,5/ 4/KGG-MSTB 2,5/ 4SET 1709978 PHOENIX CONTACT Printed-circuit board connector
MSTB 2,5/ 4/KGG-MSTB 2,5/ 4SET
1709978
PHOENIX CONTACT
10 Pcs.
Printed-circuit board connector
Plug-in connector for circ plate. printed, rated current: 12 A, number of poles: 4, pitch: 5 mm, colour: green, contact surface: Tin
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | MSTB 2,5/..-ST |
|---|---|
| Number of positions | 4 |
| Connection method | Screw connection with tension sleeve |
| Insulating material group | I |
| Rated voltage (III/2) | 320 V |
| Nominal current IN | 12 A |
| Nominal cross section | 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
