View larger
Images are for illustrative purposes only. Please refer to data sheet for details

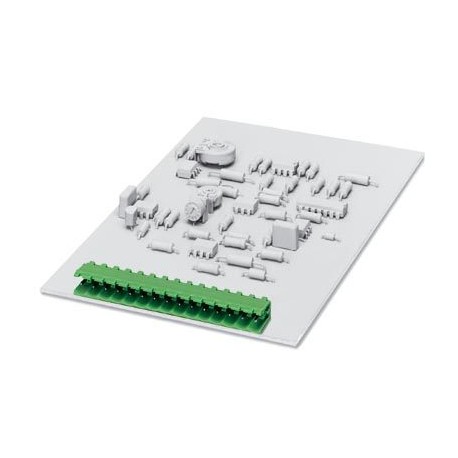

MSTB 2,5/ 4-G-5,08-LA AU 1735015 PHOENIX CONTACT Printed-circuit board connector
MSTB 2,5/ 4-G-5,08-LA AU
1735015
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Printed circuit board base case, nominal section: 2.5 mm², color: green, contact surface: Gold, contact type: Male, Number of potentials: 4, Number of rows: 1, Number of poles per row: 4, number of connections: 4, family of articles: MSTB 2.5/.. -G -LA, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.2 mm, Stecksystem: CLASSIC COMBICON, Locking: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1735015 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918216146 |
| Weight per Piece (excluding packing) | 1.680 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 20.32 mm |
| Pitch | 5.08 mm |
| Dimension a | 15.24 mm |
| Width [ w ] | 20.32 mm |
| Height [ h ] | 11.8 mm |
| Height | 8.6 mm |
| Length of the solder pin | 3.2 mm |
| Length | 12 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
