PHOENIX CONTACT PCV 6-16/ 6-G-10,16 CODED GY NZ PCV 6-16/ 6-G-10,16 CODED GY NZ 1941689 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

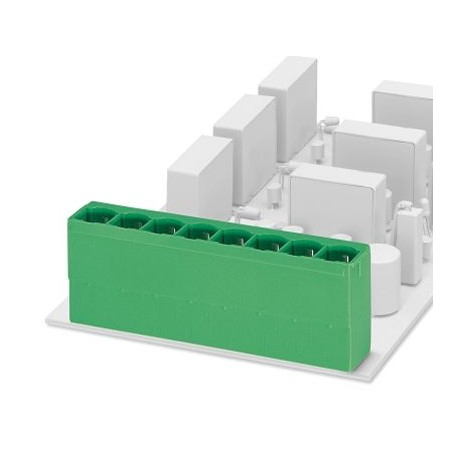

PCV 6-16/ 6-G-10,16 CODED GY NZ 1941689 PHOENIX CONTACT Feed-through header

PCV 6-16/ 6-G-10,16 CODED GY NZ

1941689

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 6 mm², color: gray, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: PCV 6-16/.. -G, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1941689
Packing unit1
GTIN4017918843502
Custom tariff number85366930

Dimensions

Pitch10.16 mm
Dimension a50.8 mm
Height29 mm
Length of the solder pin4 mm
Pin dimensions0.8 x 1.2 mm

General

Range of articlesPCV 6-16/..-G
Rated voltage (III/3)630 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Colorgray
Number of positions6

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1941689 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 10.16 mm
Modular spacing connections (EF006827) 10.16 mm
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Silver
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.7 mm
Length pin (EF006825) 4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
