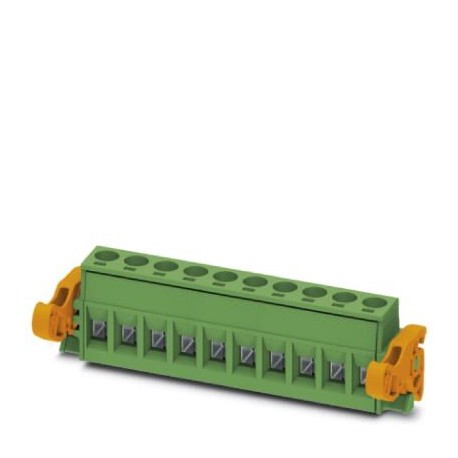

PHOENIX CONTACT MSTB 2,5/ 3-ST-5,08-LR BKBDWH+ MSTB 2,5/ 3-ST-5,08-LR BKBDWH+ 1016423 PHOENIX CONTACT Printed-circuit board connector MSTB 2,5/ 3-ST-5,08-L.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTB 2,5/ 3-ST-5,08-LR BKBDWH+ 1016423 PHOENIX CONTACT Printed-circuit board connector MSTB 2,5/ 3-ST-5,08-L..

MSTB 2,5/ 3-ST-5,08-LR BKBDWH+

1016423

PHOENIX CONTACT

1000 Pcs.

Printed-circuit board connector - MSTB 2,5/ 3-ST-5,08-LR BKBDWH+ - 1016423 Connector for printed circuit board, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, article family: MSTB 2.5/.. -ST-LR, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Snap lock, fixing type: Lock & Release extractor lever, packaging type: Boxed Packaging

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: black, contact surface: Tin

Key Commercial Data

Orderkey1016423
Packing unit1
GTIN4055626497396
Custom tariff number85366990

Item properties

Brief article descriptionPrinted-circuit board connector
Plug-in systemCLASSIC COMBICON
Type of contactFemale connector
Range of articlesMSTB 2,5/..-ST-LR
Pitch5.08 mm
Number of positions3
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted (L)
Number of levels1
Number of connections3
Number of potentials3

Electrical parameters

Rated current12 A
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG / kcmil24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 1 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 1.5 mm²
Stripping length7 mm
Torque0.5 Nm ... 0.6 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface contact area (top layer)Tin (5 - 7 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
Length [ l ]29.3 mm
Width [ w ]24.36 mm
Height [ h ]15 mm
Pitch5.08 mm
Height (without solder pin)15 mm
Dimension a10.16 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)320 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440309
eCl@ss 8.027440309
eCl@ss 9.027440309

ETIM

ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638

ETIM for 1016423 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 3
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
