View larger
Images are for illustrative purposes only. Please refer to data sheet for details

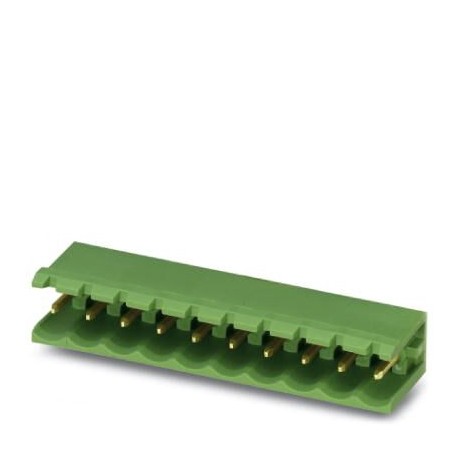

MSTB 2,5/15-G-5,08 AU 1710805 PHOENIX CONTACT Feed-through header
MSTB 2,5/15-G-5,08 AU
1710805
PHOENIX CONTACT
1000 Pcs.
Feed-through header
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Male, number of potentials: 15, number of rows: 1, number of poles: 15, number of connections: 15, article family: MSTB 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 15, pitch: 5.08 mm, color: green, contact surface: Gold, mounting: Wave soldering
Key Commercial Data
| Orderkey | 1710805 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626238777 |
| Custom tariff number | 85366930 |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 76.2 mm |
| Pitch | 5.08 mm |
| Dimension a | 71.12 mm |
| Width [ w ] | 76.2 mm |
| Height [ h ] | 11.8 mm |
| Height | 8.6 mm |
| Length of the solder pin | 3.2 mm |
| Length | 12 mm |
General
| Range of articles | MSTB 2,5/..-G |
|---|---|
| Color | green |
| Number of positions | 15 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260700 |
|---|---|
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440402 |
| eCl@ss 9.0 | 27440402 |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
