View larger
Images are for illustrative purposes only. Please refer to data sheet for details

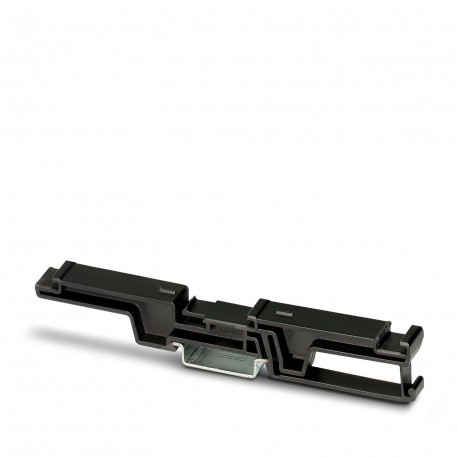

UM-PRO 122 FOOT BK 2200160 PHOENIX CONTACT Foot element
UM-PRO 122 FOOT BK
2200160
PHOENIX CONTACT
10 Pcs.
Foot element
Extruded profile housings, Rail mounting, DIN rail floor element for mounting under UM-PRO PROFILE (width: 122 mm), colour: black (9005), floor element, width: 14.3 mm, height: 135.9 mm, depth: 20.95 mm
Press-drawn section housings, DIN rail mounting, Base element for the DIN rail, for mounting below UM-PRO PROFILE (width: 122 mm), Foot element, width: 14.3 mm, height: 135.9 mm, depth: 20.95 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Assembly note | Refer to the data sheet for the range in the download area. |
Product properties
| Product type | Base latches |
| Housing type | Press-drawn section housings |
| Housing series | UM-PRO |
| Product family | UM-PRO |
| Type | Base element for the DIN rail, for mounting below UM-PRO PROFILE (width: 122 mm) |
| Data management status | |
| Article revision | 00 |
Dimensions
| Width | 14.3 mm |
| Height | 135.9 mm |
| Depth | 20.95 mm |
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Thermal stability / ball thrust test | |
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
| Mechanical strength / tumbling barrel | |
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Frequency | 50 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Mounting
| Mounting type | DIN rail mounting |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
