View larger
Images are for illustrative purposes only. Please refer to data sheet for details

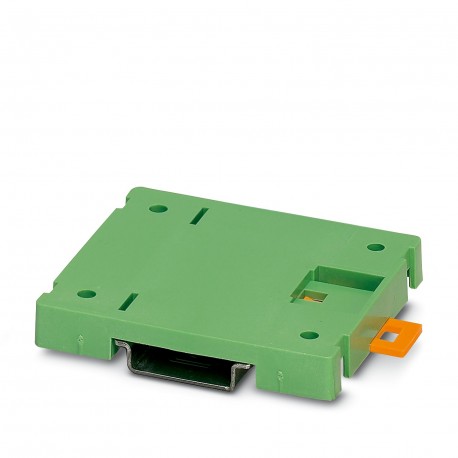

EM-MP 70 2942742 PHOENIX CONTACT Mounting material
EM-MP 70
2942742
PHOENIX CONTACT
1 Pcs.
Mounting material
Mounting plate, for screwing distribution devices size 0
Mounting panel, for screwing on size 0 switching devices
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Mounting material |
| Housing type | DIN rail adapter |
| Housing series | EM-MP |
| Type | Flat version, 70 mm wide |
Dimensions
| Dimensional drawing |  |
| Width | 70 mm |
| Length | 74.5 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Housing material | Polyamide fiber reinforced |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
