View larger
Images are for illustrative purposes only. Please refer to data sheet for details

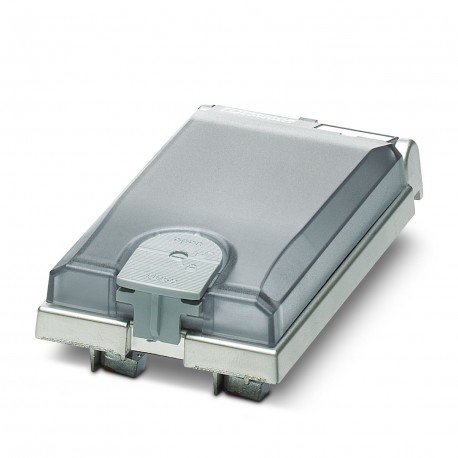

VS-SI-EB-EMV-1 1656482 PHOENIX CONTACT Mounting frame
VS-SI-EB-EMV-1
1656482
PHOENIX CONTACT
1 Pcs.
Mounting frame
Recessed frame, for 1 faceplate or socket, metal frame, nickel-plated matte, electroconductor, transparent cover
Automation > Front plate (switchgear cabinet)
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1656482 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 714 (C-2-2017) |
| GTIN | 4046356029858 |
| Weight per Piece (excluding packing) | 204.100 g |
| Custom tariff number | 85389099 |
| Country of origin | CZ (Czech Republic) |
Dimensions
| Height | 38 mm |
|---|---|
| Width | 65 mm |
| Length | 120 mm |
| Length of the assembly cutout | 91 mm |
| Width of the assembly cutout | 52 mm |
Ambient conditions
| Degree of protection of housing (IP) | IP65 |
|---|---|
| Ambient temperature (operation) | -10 °C ... 60 °C |
General
| Note | With lockable pressure lock |
|---|---|
| Type | For 1 front plate |
| Color | transparent |
| Housing material | Zinc alloy |
| Housing surface material | Nickel-plated |
| Flammability rating according to UL 94 | V0 |
| Assembly instructions | Suitable for panel thicknesses 1 mm ... 5 mm |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
