View larger
Images are for illustrative purposes only. Please refer to data sheet for details

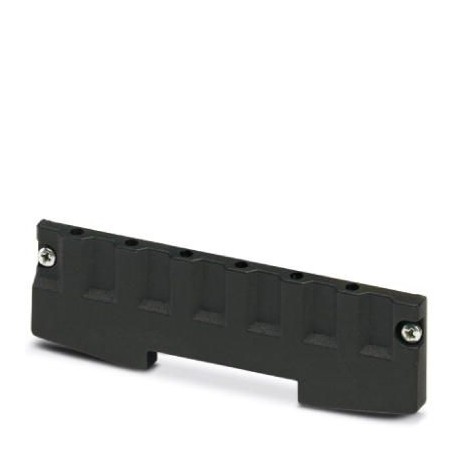

UM-ALU 4-100,5 COVER PA BK 2200952 PHOENIX CONTACT Side element
UM-ALU 4-100,5 COVER PA BK
2200952
PHOENIX CONTACT
1 Pcs.
Side element
Extruded profile housings, Bolted mounting, Side elements (left and right) incl. fixing foot and screws for basic profile, colour: black (9005), width: 105.4 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2200952 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 744 (C-1-2013) |
| GTIN | 4046356716543 |
| Weight per Piece (excluding packing) | 25.850 g |
| Custom tariff number | 39269097 |
| Country of origin | HU (Hungary) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127182701eCl@ss 4.027180401eCl@ss 4.127180401eCl@ss 5.027180506eCl@ss 5.127180500eCl@ss 6.027182000eCl@ss 7.027182701eCl@ss 8.027182701eCl@ss 9.027182701
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 105.4 mm |
