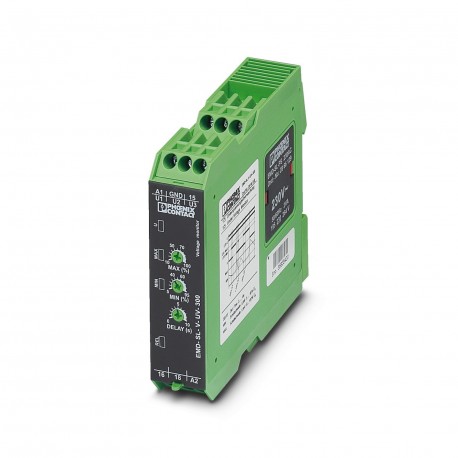

PHOENIX CONTACT EMD-SL-V-UV-300 EMD-SL-V-UV-300 2866035 PHOENIX CONTACT Monitoring relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMD-SL-V-UV-300 2866035 PHOENIX CONTACT Monitoring relay

EMD-SL-V-UV-300

2866035

PHOENIX CONTACT

1 Pcs.

Monitoring relay Supervisory relay for 1-phase voltage monitoring of 0...300 V AC/DC, undervoltage, selectable supply voltage via power module, 1 switched contact Control module for monitoring single-phase voltages from 0...300 V AC/DC, undervoltage, supply voltage optionally via power module, 1 changeover contact

Automation > Voltage monitoring relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2866035
Packing unit1 pc
Catalog pagePage 267 (C-5-2017)
GTIN4017918924331
Weight per Piece (excluding packing)132.300 g
Custom tariff number85364900
Country of originAT (Austria)

Dimensions

Width22.5 mm
Height90 mm
Depth113 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
-25 °C ... 40 °C (corresponds to UL 508)
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Input voltage range0 V ... 30 V AC/DC (connection terminal blocks: U1 and GND)
0 V ... 60 V AC/DC (connection terminal blocks: U2 and GND)
0 V ... 300 V AC/DC (connection terminal blocks: U3 and GND)
Maximum temperature coefficient< 0.1 %/K
FunctionUndervoltage
Min. setting range5 % ... 95 % (From UN)
Max. setting range10 % ... 100 % (From UN)
Setting range for response delay0.2 s ... 10 s
Basic accuracy± 5 % (of scale end value)
Setting accuracy≤ 5 % (of scale end value)
Repeat accuracy≤ 2 %
Recovery time500 ms

Contact side

Contact type1 floating PDT
Maximum switching voltage250 V AC (in acc. with IEC 60664-1)
Interrupting rating (ohmic load) max.750 VA (3 A/250 V AC, module aligned, ≤ 5 mm spacing)
1250 VA (5 A/250 V AC, module not aligned, ≥ 5 mm spacing)
Output fuse5 A (fast-blow)

Power supply

Supply voltage range24 V AC ... 230 V AC (see Power modules)
24 V DC (see Power modules)

General

Mechanical service lifeapprox. 2x 107cycles
Operating mode100% operating factor
Mounting positionany
Assembly instructionson standard DIN rail NS 35 in accordance with EN 60715
Electromagnetic compatibilityConformance with EMC Directive 2004/108/EC
Overvoltage categoryIII, basic insulation (as per EN 50178)
Housing insulation materialPolyamide PA, self-extinguishing
Colorgreen
Rated insulation voltage300 V (acc. to EN 50178)
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Connection data

Conductor cross section flexible min.0.25 mm²
Conductor cross section flexible max.2.5 mm²
Connection methodScrew connection
Stripping length8 mm
Conductor cross section solid0.5 mm² ... 2.5 mm²
Conductor cross section flexible0.25 mm² ... 2.5 mm²
Conductor cross section AWG20 ... 14
Tightening torque1 Nm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2004/108/EC
Noise emissionEN 61000-6-3
Noise immunityEN 61000-6-2
Low Voltage DirectiveConformance with LV directive 2006/95/EC
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2866035 Relays (EC001438)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
With detachable clamps (EF003340) No
Type of voltage measuring range (EF003399) AC/DC
Response value voltage (EF008193) 0 V
Single-phase under voltage possible (EF003390) Yes
Three-phase under voltage possible (EF003391) No
Single-phase over voltage possible (EF003392) No
Three-phase over voltage possible (EF003393) No
Single-phase hysteresis possible (EF003394) No
Three-phase hysteresis possible (EF003395) No
Contains function DC-under voltage (EF003396) No
Contains function DC-over voltage (EF003397) No
Contains function DC-voltage hysteresis (EF003398) No
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Width (EF000008) 22.5 mm
Height (EF000040) 90 mm
Depth (EF000049) 113 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
