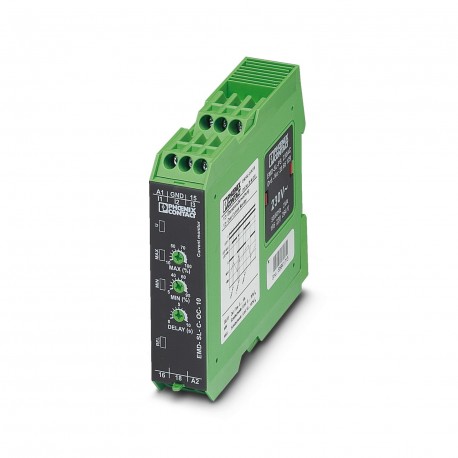

PHOENIX CONTACT EMD-SL-C-OC-10 EMD-SL-C-OC-10 2866019 PHOENIX CONTACT Monitoring relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMD-SL-C-OC-10 2866019 PHOENIX CONTACT Monitoring relay

EMD-SL-C-OC-10

2866019

PHOENIX CONTACT

1 Pcs.

Monitoring relay Supervisory relay for 1-phase current monitoring of 0...10 A AC/DC, overcurrent, selectable supply voltage via power module, 1 switched contact

Automation > Current monitoring relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2866019
Packing unit1 pc
Catalog pagePage 266 (C-5-2017)
GTIN4017918952662
Weight per Piece (excluding packing)139.500 g
Custom tariff number85364900
Country of originAT (Austria)

Dimensions

Width22.5 mm
Height90 mm
Depth113 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
-25 °C ... 40 °C (corresponds to UL 508)
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

Input current range0 mA ... 100 mA (Connection terminals: I1 and GND)
0 A ... 1 A (Connection terminals: I2 and GND)
0 A ... 10 A (Connection terminals: I3 and GND)
Overload capacity800 mA (at IN= 100 mA)
3 A (at IN= 1 A)
12 A (at IN= 10 A)
Maximum temperature coefficient< 0.1 %/K
FunctionOvercurrent
Min. setting range5 % ... 95 % (from IN)
Max. setting range10 % ... 100 % (from IN)
Setting range for response delay0.2 s ... 10 s
Basic accuracy± 5 % (of scale end value)
Setting accuracy≤ 5 % (of scale end value)
Repeat accuracy≤ 2 %
Recovery time500 ms

Contact side

Contact type1 floating PDT
Maximum switching voltage250 V AC (in acc. with IEC 60664-1)
Interrupting rating (ohmic load) max.750 VA (3 A/250 V AC, module aligned, ≤ 5 mm spacing)
1250 VA (5 A/250 V AC, module not aligned, ≥ 5 mm spacing)
Output fuse5 A (fast-blow)

Power supply

Supply voltage range24 V AC ... 230 V AC (see Power modules)
24 V DC (see Power modules)

General

Mechanical service lifeapprox. 2x 107cycles
Operating mode100% operating factor
Mounting positionany
Assembly instructionson standard DIN rail NS 35 in accordance with EN 60715
Electromagnetic compatibilityConformance with EMC Directive 2004/108/EC
Overvoltage categoryIII, basic insulation (as per EN 50178)
Housing insulation materialPolyamide PA, self-extinguishing
Colorgreen
Rated insulation voltage300 V (acc. to EN 50178)
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Connection data

Conductor cross section flexible min.0.25 mm²
Conductor cross section flexible max.2.5 mm²
Connection methodScrew connection
Stripping length8 mm
Conductor cross section solid0.5 mm² ... 2.5 mm²
Conductor cross section flexible0.25 mm² ... 2.5 mm²
Conductor cross section AWG20 ... 14
Tightening torque1 Nm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2004/108/EC
Noise emissionEN 61000-6-3
Noise immunityEN 61000-6-2
Low Voltage DirectiveConformance with LV directive 2006/95/EC
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2866019 Relays (EC001440)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
With detachable clamps (EF003340) No
Current measuring range (EF000417) 0 A
Single-phase under current possible (EF003405) No
Three-phase under current possible (EF003406) No
Single-phase overcurrent possible (EF003407) Yes
Three-phase overcurrent possible (EF003408) No
Single-phase hysteresis possible (EF003394) No
Three-phase hysteresis possible (EF003395) No
Contains function DC-voltage under current (EF003409) No
Contains function DC-voltage overcurrent (EF003410) Yes
Function DC-current hysteresis (EF003411) No
External current transformer (EF001923) No
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 1
Width (EF000008) 22.5 mm
Height (EF000040) 90 mm
Depth (EF000049) 113 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
