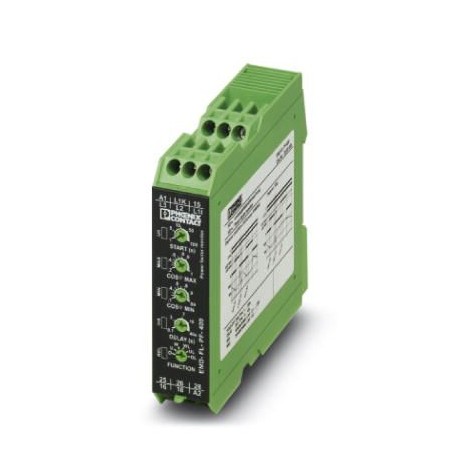

EMD-FL-PF-400 2885809 PHOENIX CONTACT Monitoring relay
EMD-FL-PF-400
2885809
PHOENIX CONTACT
1 Pcs.
Monitoring relay
Supervisory relay for load monitoring (cos φ = 0.1 ... 1) In 1 and 3 phase networks, low load, overload, Window, error memory, long range power supply, 2 switched contacts
Automation > Solid state relay
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2885809 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 270 (C-5-2017) |
| GTIN | 4046356100779 |
| Weight per Piece (excluding packing) | 168.400 g |
| Custom tariff number | 85364900 |
| Country of origin | AT (Austria) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| -25 °C ... 40 °C (corresponds to UL 508) | |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Input data
| Nominal input voltage UN | 3 N ~ 415/240 V |
|---|---|
| Input voltage range | 40 V AC ... 415 V AC (1(N) ~, single-phase load) |
| 40 V AC ... 415 V AC (3(N) ~, 3-phase load) | |
| Input current range | 0.5 A ... 10 A (Connection terminal blocks: L1i and L1k) |
| Overload capacity | 12 A permanent |
| Maximum temperature coefficient | ≤ 0.1 %/K |
| Function | Underload, overload, Window |
| Setting range for response delay | 0.1 s ... 40 s |
| Setting range for starting delay | 1 s ... 100 s |
| Basic accuracy | ± 5 % (At cos φ = 0.8) |
| Setting accuracy | ≤ 5 % (At cos φ = 0.8) |
| Repeat accuracy | ± 1.8 % |
| Recovery time | 500 ms |
Contact side
| Contact type | 2 floating PDT contacts |
|---|---|
| Maximum switching voltage | 250 V AC (in acc. with IEC 60664-1) |
| Interrupting rating (ohmic load) max. | 750 VA (3 A/250 V AC, module aligned, ≤ 5 mm spacing) |
| 1250 VA (5 A/250 V AC, module not aligned, ≥ 5 mm spacing) | |
| Output fuse | 5 A (fast-blow) |
Power supply
| Supply voltage range | 24 V AC ... 240 V AC -15 % ... +10 % |
|---|---|
| 24 V DC ... 240 V DC (-20 % ... +25 %) |
General
| Mechanical service life | approx. 2x 107cycles |
|---|---|
| Operating mode | 100% operating factor |
| Mounting position | any |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Overvoltage category | III, basic insulation (as per EN 50178) |
| Housing insulation material | Polyamide PA, self-extinguishing |
| Color | green |
| Rated insulation voltage | 300 V (acc. to EN 50178) |
| Conformance | CE-compliant |
| UL, USA/Canada | UL/C-UL listed UL 508 |
Connection data
| Conductor cross section flexible min. | 0.25 mm² |
|---|---|
| Conductor cross section flexible max. | 2.5 mm² |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.25 mm² ... 2.5 mm² |
| Conductor cross section AWG | 20 ... 14 |
| Tightening torque | 1 Nm |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 |
| Low Voltage Directive | Conformance with LV directive 2006/95/EC |
| Conformance | CE-compliant |
| UL, USA/Canada | UL/C-UL listed UL 508 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
