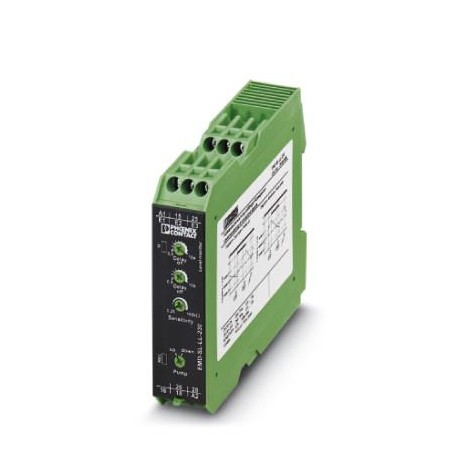

PHOENIX CONTACT EMD-SL-LL-230 EMD-SL-LL-230 2885906 PHOENIX CONTACT Monitoring relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EMD-SL-LL-230 2885906 PHOENIX CONTACT Monitoring relay

EMD-SL-LL-230

2885906

PHOENIX CONTACT

1 Pcs.

Monitoring relay Supervisory relay for charge level control of conductive liquids, minimum and maximum monitoring, supply voltage 230 V AC, 2 switched contacts

Automation > (Fill) level monitoring relay
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2885906
Packing unit1 pc
Catalog pagePage 271 (C-5-2017)
GTIN4046356144148
Weight per Piece (excluding packing)193.000 g
Custom tariff number85364900
Country of originAT (Austria)

Dimensions

Width22.5 mm
Height90 mm
Depth113 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
-25 °C ... 40 °C (corresponds to UL 508)
Ambient temperature (storage/transport)-25 °C ... 70 °C

Input data

FunctionPumping up (minimum monitoring), pumping down (maximum monitoring)
Recovery time500 ms

Contact side

Contact type2 floating PDT contacts
Maximum switching voltage250 V AC (in acc. with IEC 60664-1)
Interrupting rating (ohmic load) max.750 VA (3 A/250 V AC, module aligned, ≤ 5 mm spacing)
1250 VA (5 A/250 V AC, module not aligned, ≥ 5 mm spacing)
Output fuse5 A (fast-blow)

Power supply

Supply voltage230 V AC -15 % ... +15 % AC

General

Mechanical service lifeapprox. 2x 107cycles
Operating mode100% operating factor
Mounting positionany
Assembly instructionson standard DIN rail NS 35 in accordance with EN 60715
Electromagnetic compatibilityConformance with EMC Directive 2004/108/EC
Overvoltage categoryIII, basic insulation (as per EN 50178)
Housing insulation materialPolyamide PA, self-extinguishing
Colorgreen
Rated insulation voltage300 V (acc. to EN 50178)
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Connection data

Conductor cross section flexible min.0.25 mm²
Conductor cross section flexible max.2.5 mm²
Connection methodScrew connection
Stripping length8 mm
Conductor cross section solid0.5 mm² ... 2.5 mm²
Conductor cross section flexible0.25 mm² ... 2.5 mm²
Conductor cross section AWG20 ... 14
Tightening torque1 Nm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2004/108/EC
Noise emissionEN 61000-6-3
Noise immunityEN 61000-6-2
Low Voltage DirectiveConformance with LV directive 2006/95/EC
ConformanceCE-compliant
UL, USA/CanadaUL/C-UL listed UL 508

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2885906 Relays (EC001447)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
With detachable clamps (EF003340) No
Number of inputs for electrodes (EF003427) 3
Min. adjustable off-delay time (EF008192) 10 s
Max. permitted off-delay time (EF008191) 0.5 s
Physical measurement principle (EF008238) Conductive
Response value sensitivity adjustable (EF003429) Yes
Number of contacts as normally closed contact (EF008255) 0
Number of contacts as normally open contact (EF008256) 0
Number of contacts as change-over contact (EF008257) 2
Width (EF000008) 22.5 mm
Height (EF000040) 90 mm
Depth (EF000049) 113 mm

Product Datasheet
