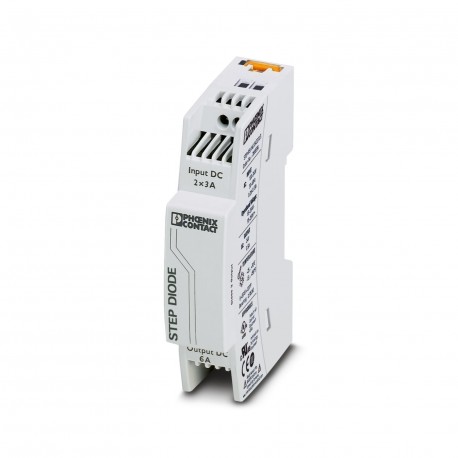

STEP-DIODE/5-24DC/2X5/1X10 2868606 PHOENIX CONTACT Redundancy module

STEP-DIODE/5-24DC/2X5/1X10

2868606

PHOENIX CONTACT

1 Pcs.

Redundancy module Redundancy module, 5 ... 24 V DC, 2 x 5 A, 1 x 10 A

Automation > Surge protection module
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2868606
Packing unit1 pc
Catalog pagePage 267 (C-4-2017)
GTIN4046356583923
Weight per Piece (excluding packing)73.200 g
Custom tariff number85049091
Country of originPL (Poland)

Dimensions

Width18 mm
Height90 mm
Depth61 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 55° C derating : 2.5%/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage range5 V DC ... 24 V DC
5 V DC ... 24 V DC
Input voltage range4.5 V DC ... 30 V DC
Nominal input current2x 5 A (-25 °C ... 55 °C)
1x 10 A (-25 °C ... 55 °C)
2x 5 A (-25 °C ... 55 °C)
1x 10 A (-25 °C ... 55 °C)

Output data

Nominal output voltage24 V DC
Setting range of the output voltage (USet)5 V DC ... 24 V DC
Nominal output current (IN)10 A (Increasing power)
5 A (Redundancy)
Derating55 °C ... 70 °C (2.5%/K)
Connection in seriesNo
Power loss nominal load max.2.5 W (IOUT= 5 A)

General

Net weight0.1 kg
Efficiency> 97 %
> 97 %
Protection classIII
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)
> 25822000 h (40 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: 0 mm horizontally, 30 mm vertically

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length6.5 mm
Screw threadM3

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length6.5 mm
Screw threadM3

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m (Test Level 3)
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m (Test Level 2)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range150 kHz ... 80 MHz
Voltage10 V (Test Level 3)
Standards/regulationsEN 61000-4-11
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Electrical safetyIEC 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
UL approvalsUL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2868606 Low-voltage industrial controls and switchgear (EC000683)
Feature Name Feature Value
Function (EF000030) Other
Voltage type (operating voltage) (EF005294) DC
Operating voltage DC (EF008208) 4.5 V
With LED indication (EF005950) No

Product Datasheet
