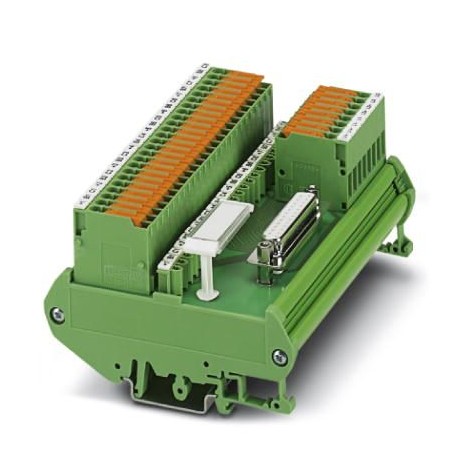

FLKM-D25 SUB/B/KDS3-MT/TU810/P 2304539 PHOENIX CONTACT Interface module

FLKM-D25 SUB/B/KDS3-MT/TU810/P

2304539

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module for ABB S800 I/O, with blade interruptible terminals and specific marking (+1, B1, C1, +2, B2, C2, ... +8, B8, C8)

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2304539
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 470 (C-5-2017)
GTIN4017918949129
Weight per Piece (excluding packing)269.840 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width126.5 mm
Height90 mm
Depth61 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2 A
Max. permissible current (separate power supply)4 A (8 A L1+/L2+)
Number of positions25
Status displayNo
Mounting positionany
Assembly instructionsIn rows with zero spacing
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection methodScrew connection with disconnect knife
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions25

Supported controller

ControllerABB S800 I/O
- suitable I/O cardDI810
DI811
DI818
DI830
DI831
DI840
DI885
DO814
DO818
AI810
AI815
AI845

Standards and Regulations

Standards/regulationsDIN EN 50178
IEC 60664
Rated insulation voltage63 V
Rated surge voltage0.6 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2304539 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 25
Rated voltage (EF000228) 30 V
Rated current (EF000227) 2 A
Depth (EF000049) 60.01 mm
Width (EF000008) 126 mm
Height (EF000040) 89.6 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
