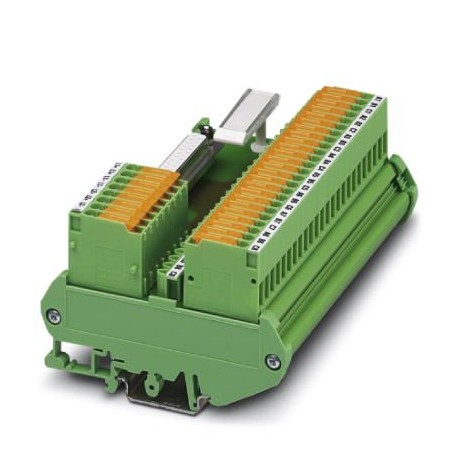

FLKM-D25 SUB/B/KDS3-MT/TU810 2304513 PHOENIX CONTACT Interface module

FLKM-D25 SUB/B/KDS3-MT/TU810

2304513

PHOENIX CONTACT

1 Pcs.

Interface module VARIOFACE module for ABB S800 I/O, with blade-interruptible terminal blocks and specific marking (A1, B1, C1, A2, B2, C2, ... A8, B8, C8)

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2304513
Packing unit1 pc
Catalog pagePage 470 (C-5-2017)
GTIN4017918949006
Weight per Piece (excluding packing)329.300 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width126.5 mm
Height90 mm
Depth61 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2 A
Max. permissible current (separate power supply)4 A (8 A L1-/L2-)
Number of positions25
Status displayNo
Mounting positionany
Assembly instructionsIn rows with zero spacing
Degree of protectionIP00

Connection data for connection 1

Connection nameField level
Connection methodScrew connection with disconnect knife
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodD-SUB socket strip
Number of connections1
Number of positions25

Supported controller

ControllerABB S800 I/O
- suitable I/O cardDI814
DO810
DO840
DP820
DP840
AI810
AI815
AI820
AI830
AI835
AI845
AO810
AO815
AO820
AO845

Standards and Regulations

Standards/regulationsDIN EN 50178
IEC 60664
Rated insulation voltage63 V
Rated surge voltage0.6 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2304513 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 25
Rated voltage (EF000228) 30 V
Rated current (EF000227) 2 A
Depth (EF000049) 59 mm
Width (EF000008) 126 mm
Height (EF000040) 89.6 mm
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
