View larger
Images are for illustrative purposes only. Please refer to data sheet for details

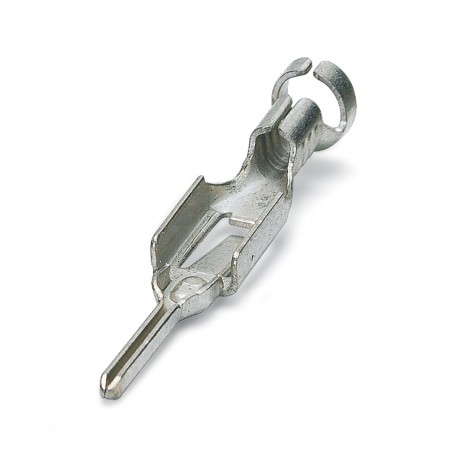

ICC-MT 1,5-2,5 3190580 PHOENIX CONTACT Accessories
ICC-MT 1,5-2,5
3190580
PHOENIX CONTACT
100 Pcs.
Accessories
Modular male terminal, inserted into the ICC connector housing after crimping the conductor, for conductors of 1.5-2.5 mm²
Modular male contact, is inserted into the ICC plug housing after the conductor has been crimped, for 1.5-2.5 mm2 conductors
Connectors > Contact for industrial connectors
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3190580 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 827 (C-1-2013) |
| GTIN | 4017918093419 |
| Weight per Piece (excluding packing) | 0.360 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Nominal current | 12 A |
|---|---|
| Conductor cross section flexible min. | 1.5 mm² |
| Max. conductor cross section, flexible | 2.5 mm² |
Connection data
| Core diameter including insulation | 2.11 mm ... 3.1 mm |
|---|---|
| Stripping length of individual wires | 4 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Max. rated current of one contact (EF007368) | 12 A |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
