View larger
Images are for illustrative purposes only. Please refer to data sheet for details

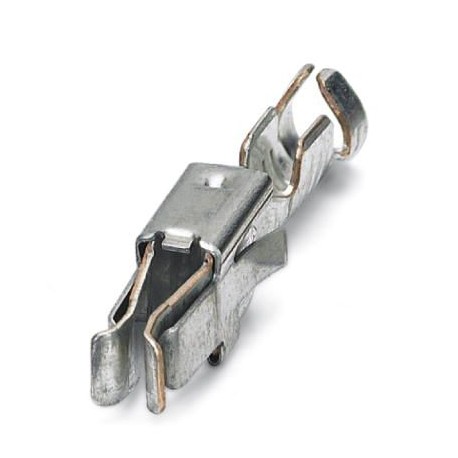

MSTBC-MT 0,5-1,0 BA 3190645 PHOENIX CONTACT Accessories
MSTBC-MT 0,5-1,0 BA
3190645
PHOENIX CONTACT
4000 Pcs.
Accessories
Modular female terminal, inserted into the MSTBC connector housing after crimping the conductor, for conductors 0.5 - 1.0 mm², ribbon contact
Connectors > Contact for industrial connectors
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3190645 |
|---|---|
| Packing unit | 4000 pc |
| Minimum order quantity | 4000 pc |
| Catalog page | Page 827 (C-1-2013) |
| GTIN | 4017918117436 |
| Weight per Piece (excluding packing) | 0.450 g |
| Custom tariff number | 85366990 |
| Country of origin | CZ (Czech Republic) |
General
| Nominal current | 12 A (with 1 mm² conductor cross section) |
|---|---|
| Conductor cross section flexible min. | 0.5 mm² |
| Max. conductor cross section, flexible | 1 mm² |
Connection data
| Core diameter including insulation | 1.4 mm ... 2.3 mm |
|---|---|
| Stripping length of individual wires | 3.5 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Max. rated current of one contact (EF007368) | 12 A |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
