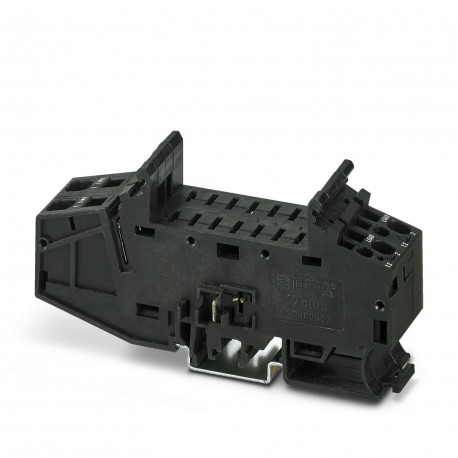

TMCP SOCKET M 0916589 PHOENIX CONTACT Box mounting base
TMCP SOCKET M
0916589
PHOENIX CONTACT
10 Pcs.
Box mounting base
Alignable, 2-pole socket for the reception of two single-pole protection switches, respectively
Stackable base, 2-pole, for holding two, each single-pole circuit breaker
Automation > Accessories/spare parts for electrical fuses/fuse holders
Over Current Protection
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0916589 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 324 (C-4-2017) |
| GTIN | 4017918600921 |
| Weight per Piece (excluding packing) | 97.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Mounting type | DIN rail: 35 mm |
| Color | black |
| Insulating material | PA-F |
| Flammability rating according to UL 94 | V0 |
Electrical data
| Fuse type | Automatic device |
|---|---|
| Rated surge voltage | 2.5 kV |
| Rated voltage | 433 V (AC) |
| 65 V (DC) | |
| Operating voltage | 433 V (AC) |
| Nominal current IN | 50 A (LINE input) |
| 25 A (LOAD output) | |
| Rated current IN | 50 A |
| Rated insulation voltage Ui | 1500 V |
| Degree of pollution | 2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
