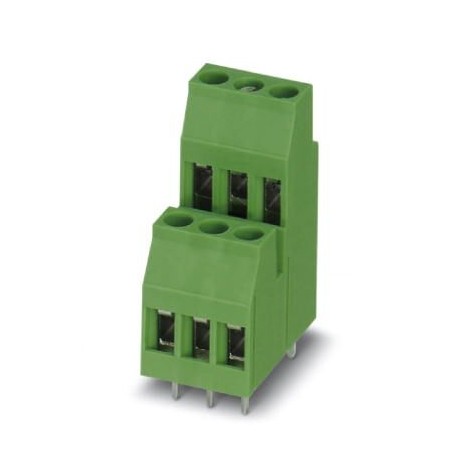

PHOENIX CONTACT MKKDSG 3/ 5 MKKDSG 3/ 5 1709352 PHOENIX CONTACT PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKKDSG 3/ 5 1709352 PHOENIX CONTACT PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 ..

MKKDSG 3/ 5

1709352

PHOENIX CONTACT

50 Pcs.

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², pitch: 5 mm, number of positions: 5, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm Terminal block for printed circuit board, nominal current: 17.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 10, number of rows: 2, number of poles per row: 5, article family: MKKDSG 3, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping method: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm, number of soldering pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1709352
Packing unit1
GTIN4055626736884
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesMKKDSG 3
Pitch5 mm
Number of positions5
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted (L)
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels2
Number of connections10
Number of potentials10
Back to top

Electrical parameters

Nom. voltage400 V
Back to top

Connection capacity

Connection methodScrew connection with tension sleeve
pluggableYes
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG / kcmil24 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 0.75 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 0.5 mm²
Stripping length7 mm
Torque0.5 Nm ... 0.6 Nm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer)Tin (4 - 8 µm Sn)
Back to top

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]22.3 mm
Width [ w ]25 mm
Height [ h ]36.4 mm
Pitch5 mm
Height (without solder pin)31.4 mm
Solder pin [P]5 mm
Pin dimensions0.9 x 0.9 mm
Dimension a20 mm
Back to top

Dimensions for PCB design

Hole diameter1.3 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Back to top

Electrical tests

Rated current17.5 A
Conductor cross section2.5 mm²
Rated voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
Back to top

Air clearances and creepage distances

Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)400 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Back to top

Classifications

eCl@ss

eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643
