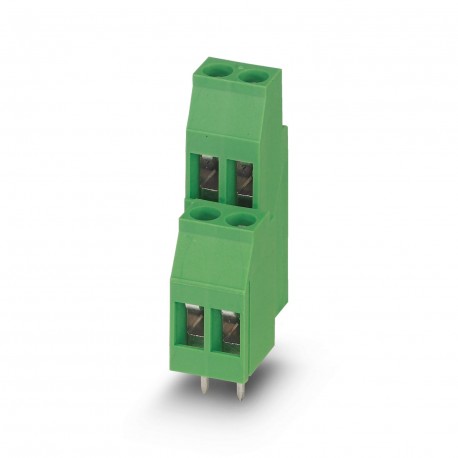

MKKDS 3/ 2-5,08 OG H1L 1710973 PHOENIX CONTACT PCB terminal block
MKKDS 3/ 2-5,08 OG H1L
1710973
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 22 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of rows: 2, number of poles per row: 2, article family: MKKDS 3, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: H1L Philipps-Recess with longitudinal groove, Mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: orange, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm, number of soldering pins per potential: 1, packaging type: boxed. The item can be aligned with different numbers of poles!
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 22.3 mm |
|---|---|
| Pitch | 5.08 mm |
| Dimension a | 5.08 mm |
| Height | 32 mm |
| Solder pin [P] | 5 mm |
| Hole diameter | 1.3 mm |
General
| Range of articles | MKKDS 3 |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 400 V |
| Nominal current IN | 22 A |
| Nominal cross section | 2.5 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 2 |
| Screw thread | M3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
