View larger

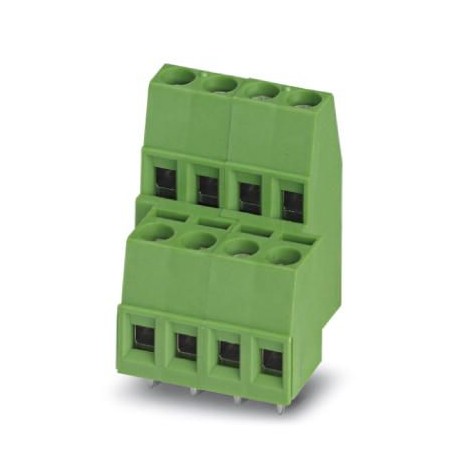

Images are for illustrative purposes only. Please refer to data sheet for details
MKKDS 1,5/ 3-5,08 BU 1725054 PHOENIX CONTACT PCB terminal block
MKKDS 1,5/ 3-5,08 BU
1725054
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal for printed circuit board, Number of poles per row: 3, family of items: MKKDS 1.5, pitch: 5.08 mm, color: blue, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, type of packaging: boxed. The item can be aligned with different numbers of poles!
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1725054 |
|---|---|
| Packing unit | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918231972 |
| Weight per Piece (excluding packing) | 9.950 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Item properties
| Number of positions | 3 |
|---|---|
| Drive form screw head | Slotted (L) |
| Screw thread | M3 |
| Pin layout | Linear pinning |
Dimensions for the product
| Length [ l ] | 21.4 mm |
|---|---|
| Width [ w ] | 17.78 mm |
| Height [ h ] | 29.5 mm |
| Pitch | 5.08 mm |
| Height (without solder pin) | 25.2 mm |
| Solder pin [P] | 3.5 mm |
| Dimension a | 10.16 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CSA | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
