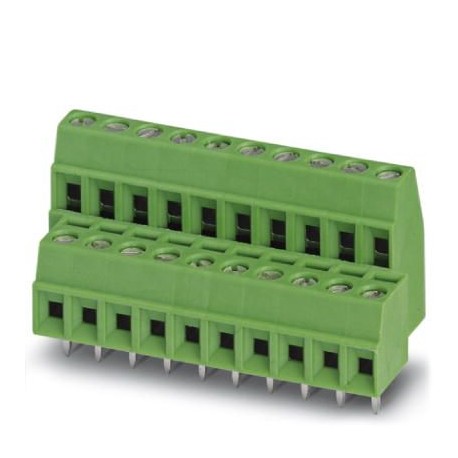

MKKDS 1/ 3-3,81 BD:6,4,2/5,3,1 1726312 PHOENIX CONTACT PCB terminal block

MKKDS 1/ 3-3,81 BD:6,4,2/5,3,1

1726312

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, rated current: 8 A, dimensioning voltage (III/2): 200 V, nominal section: 1 mm², Number of potentials: 6, Number of rows: 2, Number of poles per row: 3, family of items: MKKDS 1, pitch: 3.81 mm, type of connection: Screw connection with traction capsule, mounting: Wave soldering, Conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1726312
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4017918258443
Weight per Piece (excluding packing)3.920 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]16.3 mm
Pitch3.81 mm
Dimension a7.62 mm
Width [ w ]13.33 mm
Height17 mm
Height [ h ]16.2 mm
Solder pin [P]3.5 mm
Hole diameter1.1 mm

General

Range of articlesMKKDS 1
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)200 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1 mm²
Solder pin surface
Stripping length5 mm
Number of positions3
Screw threadM2
Tightening torque, min0.22 Nm
Tightening torque max0.25 Nm

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.16
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.0.5 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.2 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
