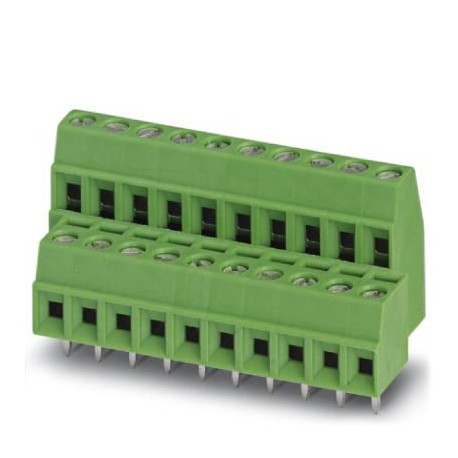

MKKDS 1/ 2-3,81GYBD:E-,E+,-,+ 1710336 PHOENIX CONTACT PCB terminal block
MKKDS 1/ 2-3,81GYBD:E-,E+,-,+
1710336
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal for printed circuit board, nominal current: 8 A, dimensioning voltage (III/2): 200 V, nominal section: 1 mm², Number of potentials: 4, Number of rows: 2, Number of poles per row: 2, family of articles: MKKDS 1, pitch: 3.81 mm, type of connection: Screw connection with traction capsule, mounting: Wave soldering, Driver/PCB connection direction: 0°, Color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5mm
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 16.3 mm |
|---|---|
| Pitch | 3.81 mm |
| Dimension a | 3.81 mm |
| Height | 17 mm |
| Height [ h ] | 16.2 mm |
| Solder pin [P] | 3.5 mm |
| Hole diameter | 1.1 mm |
General
| Range of articles | MKKDS 1 |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 200 V |
| Nominal current IN | 8 A |
| Nominal cross section | 1 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 2 |
| Screw thread | M2 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
