View larger
Images are for illustrative purposes only. Please refer to data sheet for details

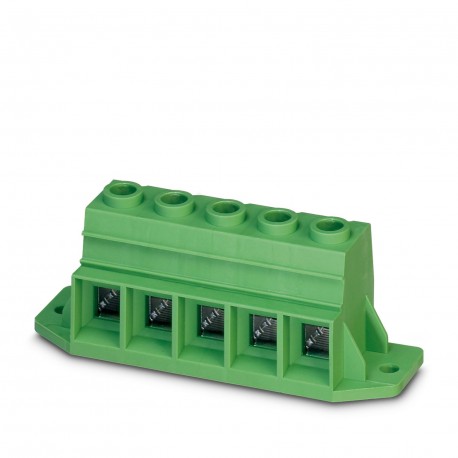

MKDSP 25/ 6-15,00-FGYNZ3544392 1706600 PHOENIX CONTACT PCB terminal block
MKDSP 25/ 6-15,00-FGYNZ3544392
1706600
PHOENIX CONTACT
10 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 125 A, nominal voltage (III/2): 1000 V, nominal section: 35 mm², number of potentials: 6, number of rows: 1, number of poles per row: 6, family of articles: MKDSP 25/.. -F, pitch: 15 mm, connection type: Screw connection with traction capsule, screw clamping method: Z2L Pozidriv with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, number of solder pins per potential: 4, Packing Type: Boxed Packed
PCB terminal, rated current: 125 A, reference voltage (III/2): 1000 V, nominal cross-section: 35 mm2, number of potentials: 6, number of rows: 1, number of poles per row: 6, item range: MKDSP 25/.. -F, pitch: 15 mm, connection type: Screw connection with ring, screw driving surface: Z2L Pozidriv with longitudinal slot, mounting: Wave soldering, conductor/PCB plugging direction: 0 °, colour: grey, Pin layout: Linear pinout, Spindle length [P]: 4.5 mm, number of pins per potential: 4, packaging type: packed in carton
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲PCB terminal block, nominal current: 125 A, nom. voltage: 1000 V, pitch: 15 mm, number of positions: 6, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: gray
Your advantages
Well-known connection principle allows worldwide useLow temperature rise, thanks to maximum contact forceAllows connection of two conductorsQuick and convenient testing using integrated test optionMounting flanges reduce the mechanical strain on the soldering spotsIntegrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
Key Commercial Data
| Orderkey | 1706600 |
|---|---|
| Packing unit | 25 pc |
| Minimum order quantity | 25 pc |
| GTIN | 4046356033350 |
| Weight per Piece (excluding packing) | 127.180 g |
| Custom tariff number | 85369010 |
| Country of origin | SK (Slovakia) |
General
| Range of articles | MKDSP 25/..-F |
|---|---|
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 8 kV |
| Rated voltage (III/3) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (II/2) | 1000 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 125 A |
| Nominal cross section | 35 mm² |
| Insulating material | PA |
| Solder pin surface | Sn |
| Internal cylindrical gage | B7 |
| Stripping length | 18 mm |
| Number of positions | 6 |
| Screw thread | M5 |
| Tightening torque, min | 2.5 Nm |
| Tightening torque max | 4.5 Nm |
| Note | Tightening torque ≤ 25 mm² is 2.5 Nm, > 25 mm² is 4.5 Nm |
Connection data
| Conductor cross section solid min. | 0.5 mm² |
|---|---|
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 1 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 1.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 35 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 2 |
| 2 conductors with same cross section, solid min. | 0.5 mm² |
| 2 conductors with same cross section, solid max. | 6 mm² |
| 2 conductors with same cross section, stranded min. | 0.5 mm² |
| 2 conductors with same cross section, stranded max. | 6 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 4 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 16 mm² |
Information on the aluminum conductor
| Cross section-torque-form of cable | Cable cross section:35 mm²; Torque:4.5 Nm; Form of cable:round, single-strand, class 1(re) |
|---|---|
| Cable cross section:25 mm²; Torque:2.5 Nm; Form of cable:round, single-strand, class 1(re) | |
| Cable cross section:16 mm²; Torque:2.5 Nm; Form of cable:round, single-strand, class 1(re) | |
| Specification | DIN VDE 0276-603 (VDE 0276-603):2010-03 |
| Note on conductor pretreatment | The following measures are required for durable and reliable contacting of the aluminum conductor: the stripped end of the aluminum conductor must be separated from the oxide layer using a blade, and immediately dipped in non-acid and non-alkali Vaseline. The pretreatment must be repeated when connecting the conductors anew. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
eCl@ss
| eCl@ss 4.0 | 27141109 |
|---|---|
| eCl@ss 4.1 | 27141109 |
| eCl@ss 5.0 | 27141190 |
| eCl@ss 5.1 | 27141190 |
| eCl@ss 6.0 | 27261101 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
UNSPSC
| UNSPSC 6.01 | 30211801 |
|---|---|
| UNSPSC 7.0901 | 39121432 |
| UNSPSC 11 | 39121432 |
| UNSPSC 12.01 | 39121432 |
| UNSPSC 13.2 | 39121432 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 43.5 mm |
| Number of electrical connections (EF008252) | 6 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 15 mm |
| Rated current In (EF008250) | 125 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.6 mm |
| Length pin (EF006825) | 4.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Flange |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
