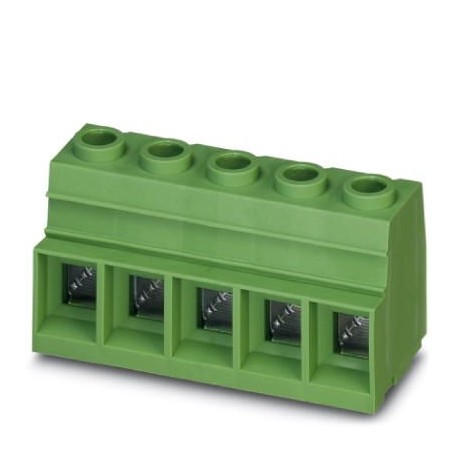

PHOENIX CONTACT MKDSP 25/5-15.00 BD:NZ MKDSP 25/5-15.00 BD:NZ 5606765 PHOENIX CONTACT PCB terminal block, nominal current: 125 A, rated voltage (II.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDSP 25/5-15.00 BD:NZ 5606765 PHOENIX CONTACT PCB terminal block, nominal current: 125 A, rated voltage (II..

MKDSP 25/5-15.00 BD:NZ

5606765

PHOENIX CONTACT

250 Pcs.

PCB terminal block, nominal current: 125 A, rated voltage (III/2): 1000 V, nominal cross section: 35 mm², pitch: 15 mm, number of positions: 5, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green Terminal block for printed circuit board, nominal current: 125 A, nominal voltage (III/2): 1000 V, nominal cross-section: 35 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, article family: MKDSP 25, pitch: 15 mm, connection type: Screw connection with traction capsule, screw clamping method: Z2L Pozidriv with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, number of solder pins per potential: 4, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey5606765
Packing unit1 pc
GTIN4055626086958
Weight per Piece (excluding packing)105.580 g
Custom tariff number85369010
Country of originSK (Slovakia)

Drawings

Diagram

Diagram
Type: MKDSP 25/...-15,00(-F)

Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643
Back to top

UNSPSC

UNSPSC 13.239121432
UNSPSC 18.039121432
UNSPSC 19.039121432
UNSPSC 20.039121432
UNSPSC 21.039121432
Back to top

ETIM for 5606765 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 43.5 mm
Number of electrical connections (EF008252) 5
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 15 mm
Rated current In (EF008250) 125 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Connectable conductor cross section multi-wired (EF007343) 0.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.6 mm
Length pin (EF006825) 4.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of banding (EF007011) Carton (for SMD)
