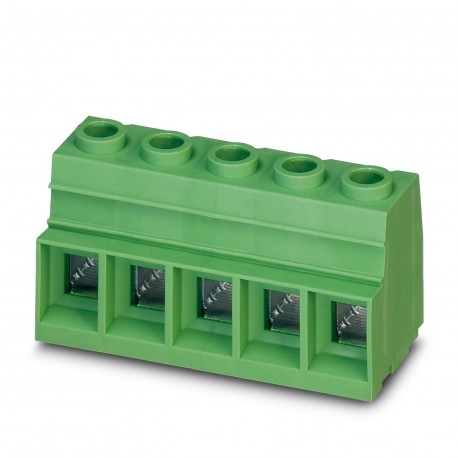

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
MKDSP 25/ 3-15,00 GY BD:U-W 1712510 PHOENIX CONTACT Terminal for printed circuit board, rated voltage: 1000 ..
MKDSP 25/ 3-15,00 GY BD:U-W
1712510
PHOENIX CONTACT
25 Pcs.
Terminal for printed circuit board, rated voltage: 1000 V, pitch: 15 mm, number of poles: 3, type of connection: Connection by screw with capsule-traction, assembly: wave Soldering, color: gray
Terminal block for printed circuit board, rated current: 125 A, rated voltage (III/2): 1000 V, rated cross-section: 35 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: MKDSP 25, pitch: 15 mm, connection type: Screw connection with traction capsule, screw clamping method: Z2L Pozidriv with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, number of solder pins per potential: 4, packaging type: boxed
PCB terminal block, rated current: 125 A, dimensioning voltage (III/2): 1000 V, nominal cross-section: 35 mm2, number of potentials: 3, number of rows: 1, number of poles per row: 3, product series: MKDSP 25, pitch: 15 mm, connection type: screw connection with cage, screw connection form: Z2L Pozidriv with longitudinal slot, Mounting: Wave soldering, conductor/board connection direction: 0°, Color: Grey, Pin layout: Linear pinning, Pin length [P]: 4.5 mm, Number of solder pins per potential: 4, Package type: packed in carton
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Type | PCB terminal block |
| Product Family | MKDSP 25 |
| Product Line | COMBICON Terminals XL |
| Number of poles | 3 |
| Step | 15 mm |
| Number of connections | 3 |
| Number of rows | 1 |
| Number of potentials | 3 |
| Pin Layout | Linear Pinning |
| Number of Welding Pins per Potential | 4 |
| Data maintenance status | |
| Article review | 02 |
| Rated Current IN | 125 A |
| Rated voltage UN | 1000 V |
| Sizing voltage (III/3) | 1000 V |
| Sizing impulse voltage (III/3) | 8 kV |
| Sizing voltage (III/2) | 1000 V |
| Sizing Impulse Voltage (III/2) | 8 kV |
| Sizing voltage (II/2) | 1000 V |
| Sizing Impulse Voltage (II/2) | 8 kV |
| Connection technology | |
| type | Standard |
| Nominal cross-section | 35 mm² |
| Conductor connection | |
| Link | Screw connection with cage |
| Rigid conductor cross-section | 0.5 mm² ... 35 mm² |
| Flexible conductor cross-section | 0.5 mm² ... 35 mm² |
| Conductor cross-section AWG | 20 ... 2 |
| Flexible conductor cross-section with cable lug without plastic collar | 1 mm² ... 35 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 1.5 mm² ... 35 mm² |
| 2 conductors of identical cross-section, rigid | 0.5 mm² ... 6 mm² |
| 2 conductors of identical flexible cross-section | 0.5 mm² ... 6 mm² |
| 2 conductors of the same flexible cross-section with ferrule without plastic collar | 0.5 mm² ... 4 mm² |
| 2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar | 0.5 mm² ... 16 mm² |
| Length of the section to be stripped | 18 mm |
| Appliance type screw head | Pozidriv with longitudinal slit (Z2L) |
| Tightening torque | 2.5 Nm ... 4.5 Nm ( |
| Indications for aluminium conductors | |
| Cross-section / tightening torque / cable shape | Line cross-section:35 mm²; Tightening torque:4.5 Nm; Cable Shape: Circular, Rigid, Class 1 (RE) |
| Test Specification | DIN VDE 0276-603 (VDE 0276-603):2010-03 |
| Note for conductor preparation | To ensure safe and long-lasting contact of the aluminium conductor, it is recommended to observe the following measures: remove the oxide layer on the end of the conductor with a blade and immediately immerse the end in petroleum jelly (neither acidic, nor alkaline, i.e. neutral). Repeat this procedure each time you connect again. |
| Mounting type | Wave Soldering |
| Pin Layout | Linear Pinning |
| Processing Instructions | |
| Process | Wave Soldering |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Galvanic tin plating |
| Metal Surface, Connection Point (Surface Layer) | Tin (5 - 7 μm Sn) |
| Metal Surface Welding Area (Surface Layer) | Tin (5 - 7 μm Sn) |
| Material information - case | |
| Color (Case) | Grey (7042) |
| Insulation material | PA |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Flammability index of GWFI filament according to EN 60695-2-12 | 850 |
| GWIT filament ignition temperature according to EN 60695-2-13 | 775 |
| Brinell hardness test temperature according to EN 60695-10-2 | 125 °C |
| Dimensioned Drawing |  |
| Step | 15 mm |
| Width [w] | 45 mm |
| Height [h] | 43.5 mm |
| Length [l] | 31 mm |
| Installation Height | 39 mm |
| Weld Shank Length [P] | 4.5 mm |
| Shank sizes | 1.2 x 1.2 mm |
| Printed circuit board design | |
| Bore diameter | 1.6 mm |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Tensile test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.5 mm² / rigid / > 20 N |
| 0.5 mm² / flexible / > 20 N | |
| 35 mm² / semi-rigid / > 190 N | |
| 35 mm² / flexible / > 190 N | |
| Ambient Temperature Test | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Heating verification requirement | The sum of the ambient temperature and the heating of the PCB terminal should not exceed the upper limit of the temperature. |
| Short-term current resistance | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 1000 V |
| Rated impulse voltage (III/3) | 8 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 8 mm |
| Minimum creepage value (III/3) | 12.5 mm |
| Rated Isolation Voltage (III/2) | 1000 V |
| Rated impulse voltage (III/2) | 8 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 8 mm |
| Minimum creepage value (III/2) | 8 mm |
| Rated Isolation Voltage (II/2) | 1000 V |
| Rated Impulse Voltage (II/2) | 8 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 8 mm |
| Minimum creepage value (II/2) | 8 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Test Directions | X, Y, and Z axis |
| Glow Wire Test | |
| Test Specification | DIN EN 60695-2-10 (VDE 0471-2-10):2001-11 |
| Temperature | 850 °C |
| Duration of application | 5 s |
| Aging | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (Depending on current flow curve/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 43.5 mm |
| Number of electrical connections (EF008252) | 3 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 15 mm |
| Rated current In (EF008250) | 125 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.6 mm |
| Length pin (EF006825) | 4.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of banding (EF007011) | Carton (for SMD) |
