View larger
Images are for illustrative purposes only. Please refer to data sheet for details

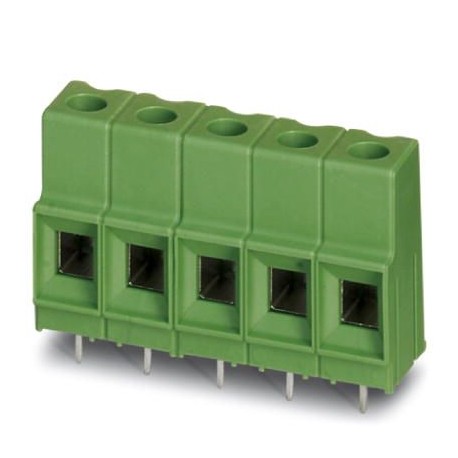

MKDSP 10N/ 5-10,16 GY 1714994 PHOENIX CONTACT PCB terminal block
MKDSP 10N/ 5-10,16 GY
1714994
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal section: 16 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, family of articles: MKDSP 10N, pitch: 10.16 mm, type of connection: Screw connection with traction capsule, mounting: Wave soldering, Conductor connection direction/printed circuit board: 0 °, color: gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm, number of solder pins per potential: 2, packaging type: boxed packaging. The item can be aligned with different numbers of poles!
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 18.4 mm |
|---|---|
| Pitch | 10.16 mm |
| Dimension a | 40.64 mm |
| Width [ w ] | 50.8 mm |
| Height | 29.3 mm |
| Height [ h ] | 34.3 mm |
| Solder pin [P] | 5 mm |
| Hole diameter | 1.5 mm |
General
| Range of articles | MKDSP 10N |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 1000 V |
| Nominal current IN | 76 A |
| Nominal cross section | 10 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 5 |
| Screw thread | M4 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
