View larger

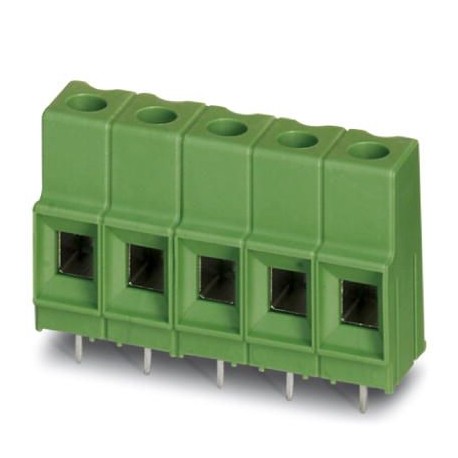

Images are for illustrative purposes only. Please refer to data sheet for details
MKDSP 10N/ 2-10,16 OG 1710326 PHOENIX CONTACT PCB terminal block base
MKDSP 10N/ 2-10,16 OG
1710326
PHOENIX CONTACT
50 Pcs.
PCB terminal block base
Terminal block for printed circuit board, nominal current: 76 A, dimensioning voltage (III/2): 1000 V, nominal section: 16 mm², Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, family of articles: MKDSP 10N, pitch: 10.16 mm, type of connection: Screw connection with traction capsule, mounting: Wave soldering, Conductor/PCB connection direction: 0 °, color: orange, Pin arrangement: Double linear pin arrangement, Pin length [P]: 5 mm, packaging type: boxed packaging. The item can be aligned with different numbers of poles!
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | MKDSP 10N |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 1000 V |
| Nominal current IN | 76 A |
| Nominal cross section | 10 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 2 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
