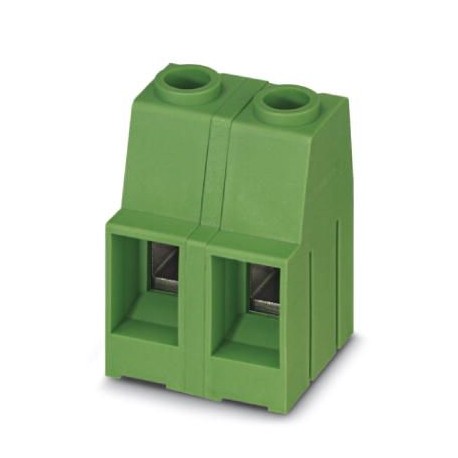

PHOENIX CONTACT MKDSP 10HV/ 9-12,7 H1L MKDSP 10HV/ 9-12,7 H1L 1708989 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDSP 10HV/ 9-12,7 H1L 1708989 PHOENIX CONTACT PCB terminal block

MKDSP 10HV/ 9-12,7 H1L

1708989

PHOENIX CONTACT

1000 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal cross-section: 16 mm², number of potentials: 9, number of rows: 1, number of poles per row: 9, article family: MKDSP 10HV, pitch: 12.7 mm, connection type: Screw connection with traction capsule, screw clamping method: H1L Philipps-Recess with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 5 mm, number of soldering pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1708989
Packing unit1
GTIN4055626030111
Custom tariff number85369010

Dimensions

Length [ l ]22 mm
Pitch12.7 mm
Dimension a101.6 mm
Width [ w ]91.44 mm
Height31 mm
Height [ h ]36 mm
Solder pin [P]5 mm
Hole diameter1.5 mm

General

Range of articlesMKDSP 10HV
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Nominal cross section10 mm²
Solder pin surface
Internal cylindrical gageB6
Stripping length10 mm
Number of positions9
Screw threadM4
Tightening torque, min1.2 Nm
Tightening torque max1.5 Nm

Connection data

Conductor cross section AWG min.20
Conductor cross section AWG max.6
2 conductors with same cross section, solid min.0.5 mm²
2 conductors with same cross section, solid max.4 mm²
2 conductors with same cross section, stranded min.0.5 mm²
2 conductors with same cross section, stranded max.4 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.6 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
