PHOENIX CONTACT MKDSO 5/ 3-R-6,35 HTBKMSTTS AP MKDSO 5/ 3-R-6,35 HT BK MST TS 1736913 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

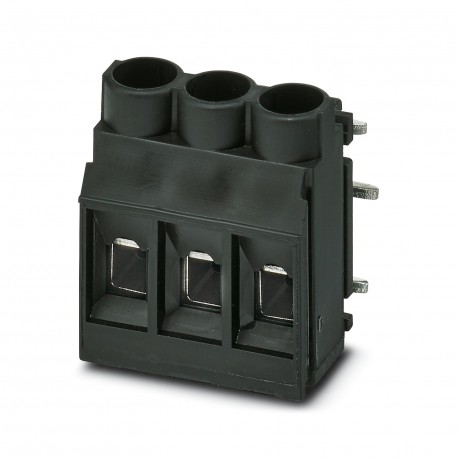

MKDSO 5/ 3-R-6,35 HT BK MST TS 1736913 PHOENIX CONTACT PCB terminal block

MKDSO 5/ 3-R-6,35 HTBKMSTTS AP

1736913

PHOENIX CONTACT

1000 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 32 A, nominal voltage (III/2): 630 V, nominal section: 4 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, family of articles: MKDSO 5/.. -R, pitch: 6.35 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 3 mm, number of solder pins per potential: 1, packaging type: boxed PCB terminal block, rated current: 32 A, dimensioning voltage (III/2): 630 V, nominal cross-section: 4 mm2, number of potentials: 3, number of rows: 1, number of poles per row: 3, product series: MKDSO 5/.. -R, pitch: 6.35 mm, connection type: Screw connection with cage, screw attachment form: Z1L Philipps Recess with longitudinal slot, mounting: Wave soldering, conductor/board connection direction: 0°, color: black, Pin layout: Linear pinning, Pin length [P]: 3 mm, number of solder pins per potential: 1, package type: packed in carton

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1736913
Packing unit50 pc
Minimum order quantity50 pc
GTIN4046356184311
Weight per Piece (excluding packing)8.620 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Pitch6.35 mm
Dimension a12.7 mm
Solder pin [P]3 mm

General

Range of articlesMKDSO 5/..-R
Nominal cross section4 mm²
Solder pin surface
Number of positions3

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1736913 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 22 mm
Number of electrical connections (EF008252) 3
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 6.35 mm
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.5 mm
Length pin (EF006825) 3 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
