View larger
Images are for illustrative purposes only. Please refer to data sheet for details

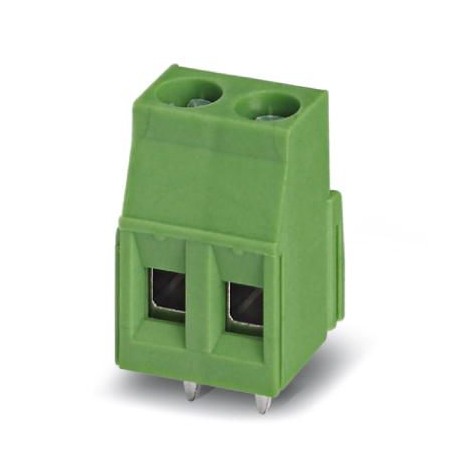

MKDSN 2,5/ 9-B-5,08 MC NZ B3-4 1709120 PHOENIX CONTACT PCB terminal block
MKDSN 2,5/ 9-B-5,08 MC NZ B3-4
1709120
PHOENIX CONTACT
50 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal section: 2.5 mm², number of potentials: 9, number of rows: 1, number of poles per row: 9, article family: MKDSN 2.5, pitch: 5.08 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, Driver/PCB connection direction: 0°, Color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5mm, number of solder pins per potential: 1, Packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
