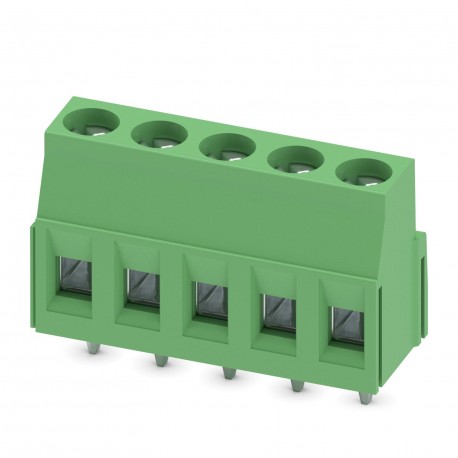

PHOENIX CONTACT MKDSN 2,5/ 5-5,08 MKDSN 2,5/ 5-5,08 1931644 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDSN 2,5/ 5-5,08 1931644 PHOENIX CONTACT PCB terminal block

MKDSN 2,5/ 5-5,08

1931644

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal cross-section: 2.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, article family: MKDSN 2.5, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: H1L Philipps-Recess with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed. The item can be aligned with different numbers of poles! PCB terminal block, rated current: 24 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 2.5 mm2, number of potentials: 5, number of rows: 1, number of poles per row: 5, product series: MKDSN 2.5, pitch: 5.08 mm, connection type: Screw connection with cage, screw connection form: H1L Philipps Recess with longitudinal slot, Mounting: Wave soldering, Conductor/board connection direction: 0°, Color: Green, Pin Layout: Linear Pinning, Pin Length [P]: 3.5mm, Number of Soldering Pins per Potential: 1, Package Type: Packed in the carton. The article can be aligned with different numbers of poles!

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1931644
Packing unit50 pc
Minimum order quantity50 pc
GTIN4017918844059
Weight per Piece (excluding packing)7.700 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]9.5 mm
Pitch5.08 mm
Dimension a20.32 mm
Width [ w ]25.4 mm
Height15 mm
Height [ h ]18.5 mm
Solder pin [P]3.5 mm
Hole diameter1.3 mm

General

Range of articlesMKDSN 2,5
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section2.5 mm²
Maximum load current16 A (with a 2.5 mm² conductor cross section)
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA3
Stripping length6.5 mm
Number of positions5
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.0.75 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.75 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
