> PHOENIX CONTACT > PCB Connectors (PCC) > 1709154

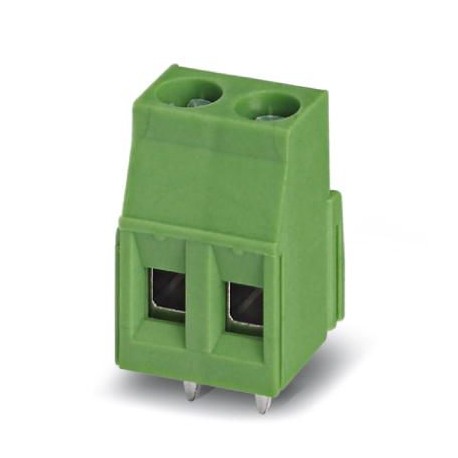

PHOENIX CONTACT MKDSN 2,5/ 2-5,08 OG BD:L/+ Q MKDSN 2,5/ 2-5,08 OG BD:L/+ Q 1709154 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDSN 2,5/ 2-5,08 OG BD:L/+ Q 1709154 PHOENIX CONTACT PCB terminal block

MKDSN 2,5/ 2-5,08 OG BD:L/+ Q

1709154

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, rated current: 24 A, dimensioning voltage (III/2): 400 V, nominal section: 2.5 mm², Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, article family: MKDSN 2.5, pitch: 5.08 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, Connection direction conductor/printed circuit board: 0 °, color: orange, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1709154
Packing unit1
GTIN4055626048123
Custom tariff number85369010

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
