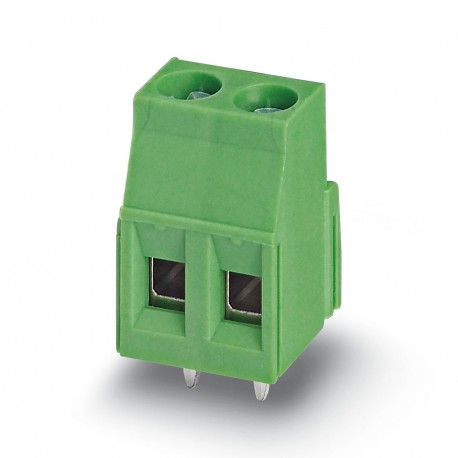

MKDSN 2,5/10-5,08 BD:32-41 1044513 PHOENIX CONTACT Terminal for printed circuit board, rated voltage: 400 V,..
MKDSN 2,5/10-5,08 BD:32-41
1044513
PHOENIX CONTACT
50 Pcs.
Terminal for printed circuit board, rated voltage: 400 V, pitch: 5,08 mm, number of poles: 10, type of connection: Connection by screw with capsule-traction, assembly: wave Soldering, color: green
Printed circuit board terminal block, rated current: 24 A, rated voltage (III/2): 400 V, rated cross-section: 2.5 mm², number of potentials: 10, number of rows: 1, number of poles per row: 10, article family: MKDSN 2.5, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: H1L Philipps-Recess with longitudinal slot, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin length [P]: 3.5 mm, number of potential soldering pins: 1
PCB terminal, nominal current: 24 A, reference voltage (III/2): 400 V, nominal cross-section: 2.5 mm2, number of potentials: 10, number of rows: 1, number of poles per row: 10, article range: MKDSN 2.5, pitch: 5.08 mm, connection type: Screw connection with ring, screw driving surface: H1L Philipps-Recess with longitudinal slot, Mounting: Wave soldering, conductor/PCB plugging direction: 0°, Colour: green, Pin layout: Linear broaching, Spindle length [P]: 3.5 mm, Number of pins per potential: 1, Packaging type: Packed in carton
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Type | Printed circuit board terminal |
| Product range | MKDSN 2.5 |
| Product Line | COMBICON Terminals M |
| Number of poles | 10 |
| Steps | 5.08 mm |
| Number of connections | 10 |
| Number of rows | 1 |
| Number of potentials | 10 |
| Pinout plot | Linear pinout |
| Number of pins per potential | 1 |
| Data Management Status | |
| Revision of the article | 01 |
| Rated Current IN | 24 A |
| Rated voltage UN | 400 V |
| Reference voltage (III/3) | 250 V |
| Rated Shock Resistance Voltage (III/3) | 4 kV |
| Rated Voltage (III/2) | 400 V |
| Rated Shock Withstand Voltage (III/2) | 4 kV |
| Reference voltage (II/2) | 630 V |
| Rated Shock Withstand Voltage (II/2) | 4 kV |
| Connection technology | |
| Type | Multi-pole terminal block for I.C. |
| Nominal cross-section | 2.5 mm² |
| Conductor connection | |
| Connection type | Screwed connection with ring |
| Rigid conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Soft conductor section | 0.2 mm² ... 2.5 mm² |
| Conductive section. AWG | 24 ... 14 |
| Soft conductor section with end cap, without plastic bushing | 0.25 mm² ... 2.5 mm² |
| Soft conductor section with plastic end cap and socket | 0.25 mm² ... 2.5 mm² |
| 2 rigid conductors of the same cross-section | 0.2 mm² ... 0.75 mm² |
| 2 flexible conductors of the same cross-section | 0.2 mm² ... 0.75 mm² |
| 2 conductors of the same cross-section, flexible with plastic sleeveless end cap | 0.25 mm² ... 0.75 mm² |
| 2 flexible conductors of the same cross-section with TWIN bit and plastic socket | 0.5 mm² ... 1.5 mm² |
| Stripping length | 6.5 mm |
| Screw head drive shape | Philipps-Recess with Longitudinal Slot (H1L) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Mounting Type | Wave Welding |
| Pinout plot | Linear pinout |
| Material indication - contact | |
| Note | WEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface quality | Galvanic tinning |
| Metal surface connection point (top layer) | Tin (4 - 8 μm Sn) |
| Metal surface, welding area (top layer) | Tin (4 - 8 μm Sn) |
| Material indication - housing | |
| Colors (Cases) | Green (6021) |
| Insulating material | PA |
| Insulation Group | I |
| CRI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| GWFI glow wire flammability class according to EN 60695-2-12 | 850 |
| GWIT glow wire ignition temperature according to EN 60695-2-13 | 775 |
| Ball pressure test temperature according to EN 60695-10-2 | 125 °C |
| Application Note | For the safe connection of the conductors, always observe a defined torque. Especially for two- or three-pole PCB terminal blocks, the welded individual spike is not able to withstand this for each contact point. For this reason, terminal blocks must be maintained when connecting conductors (manually fixed and housing maintained). |
| Dimensioned drawing |  |
| Steps | 5.08 mm |
| Width [w] | 50.8 mm |
| Height [h] | 18.5 mm |
| Length [l] | 9.5 mm |
| Mounting height | 15 mm |
| Welding pin length [P] | 3.5 mm |
| Dimensions of the pins | 0.8 x 0.9 mm |
| PCB design | |
| Drilling Diameter | 1.3 mm |
| Investigation of damage and loosening of conductors | |
| Control Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Successful test |
| Traction Control | |
| Control Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tractive force, nominal/actual | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / soft / > 10 N | |
| 2.5 mm² / rigid / > 50 N | |
| 2.5 mm² / soft / > 50 N | |
| Warm-up test | |
| Control Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Requirement for heating control | The total of the ambient temperature and the heating of the PCB terminal block must not exceed the upper temperature limit. |
| Resistance to short-term currents | |
| Control Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Insulation resistance | |
| Control Specification | DIN EN 60512-3-1:2003-01 |
| Insulation resistance of neighboring poles | > 5 MΩ |
| Air Distances and Trailing Lines | |
| Control Specification | DIN EN 60947-1 (VDE 0660-100):2015-09 |
| Insulation Group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | SIC 600 |
| Rated Insulation Voltage (III/3) | 250 V |
| Rated Shock Resistance Voltage (III/3) | 4 kV |
| minimum value of distance in air - non-homogeneous field (III/3) | 3 mm |
| minimum creepage value (III/3) | 3.2 mm |
| Rated Insulation Voltage (III/2) | 400 V |
| Rated Shock Voltage (III/2) | 4 kV |
| minimum value of distance in air - non-homogeneous field (III/2) | 3 mm |
| minimum creepage value (III/2) | 3 mm |
| Rated Insulation Voltage (II/2) | 630 V |
| Rated Shock Withstand Voltage (II/2) | 4 kV |
| minimum value of distance in air - non-homogeneous field (II/2) | 3 mm |
| minimum creepage value (II/2) | 3.2 mm |
| Vibration Resistance Test | |
| Control Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Scan Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Inspection time per axis | 2.5 hrs |
| Sense of control | X, Y, and Z Axes |
| Glow Wire Test | |
| Control Specification | DIN EN 60695-2-10 (VDE 0471-2-10):2014-04 |
| Temperature | 850 °C |
| Time of action | 5 s |
| Aging | |
| Control Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Environmental conditions | |
| Ambient Temperature (Operating) | -40 °C ... 105 °C (Depending on current/derating capacitance curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Type of packaging | packed in a carton |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 18.5 mm |
| Number of electrical connections (EF008252) | 10 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 24 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.2 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
