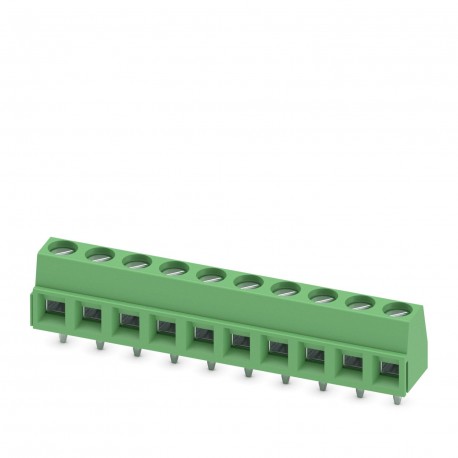

PHOENIX CONTACT MKDSN 1,5/ 9 SSC MKDSN 1,5/ 9 SSC 1715282 PHOENIX CONTACT PCB terminal block, pitch: 5 mm, number of positions: 9, color: gre.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDSN 1,5/ 9 SSC 1715282 PHOENIX CONTACT PCB terminal block, pitch: 5 mm, number of positions: 9, color: gre..

MKDSN 1,5/ 9 SSC

1715282

PHOENIX CONTACT

60 Pcs.

PCB terminal block, pitch: 5 mm, number of positions: 9, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm Terminal block for printed circuit board, rated current: 13.5 A, rated voltage (III/2): 400 V, rated cross-section: 1.5 mm², number of rows: 1, number of poles per row: 9, article family: MKDSN 1.5, pitch: 5 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1715282
Packing unit1
GTIN4055626405285
Custom tariff number85369010

Item properties

Number of positions9
Drive form screw headSlotted
Pin layoutLinear pinning
Back to top

Dimensions for the product

Length [ l ]8.1 mm
Width [ w ]45 mm
Height [ h ]13.5 mm
Pitch5 mm
Height (without solder pin)10 mm
Solder pin [P]3.5 mm
Pin spacing5 mm
Dimension a40 mm
Back to top

Dimensions for PCB design

Hole diameter1.3 mm
Pin spacing5 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package100
Denomination packing unitsPcs.
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401
Back to top

ETIM

ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643
Back to top

ETIM for 1715282 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 13.47 mm
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 17.5 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
