View larger
Images are for illustrative purposes only. Please refer to data sheet for details

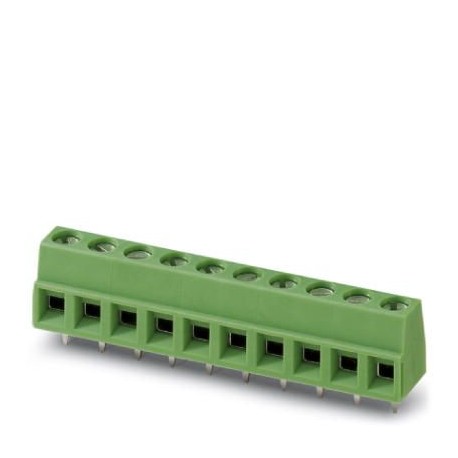

MKDSN 1,5/ 8 RD H1L 1711807 PHOENIX CONTACT PCB terminal block
MKDSN 1,5/ 8 RD H1L
1711807
PHOENIX CONTACT
60 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 400 V, nominal section: 1.5 mm², number of rows: 1, number of poles per row: 8, article family: MKDSN 1.5, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping form: H1L Philipps-Recess with longitudinal groove, Mounting: Wave Soldering, Conductor/PCB Connection Direction: 0°, Color: Red, Pin Arrangement: Linear Pin Arrangement, Pin Length [P]: 3.5mm, Number of Solder Pins per Potential: 1, Packaging Type: Boxed Packaged
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Item properties
| Number of positions | 8 |
|---|---|
| Drive form screw head | Philipps recess with slotted Torx (H1L) |
| Screw thread | M3 |
| Pin layout | Linear pinning |
Dimensions for the product
| Length [ l ] | 8.1 mm |
|---|---|
| Width [ w ] | 10 mm |
| Height [ h ] | 13.5 mm |
| Pitch | 5 mm |
| Height (without solder pin) | 10 mm |
| Solder pin [P] | 3.5 mm |
| Pin spacing | 5 mm |
| Dimension a | 5 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 100 |
| Denomination packing units | Pcs. |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
