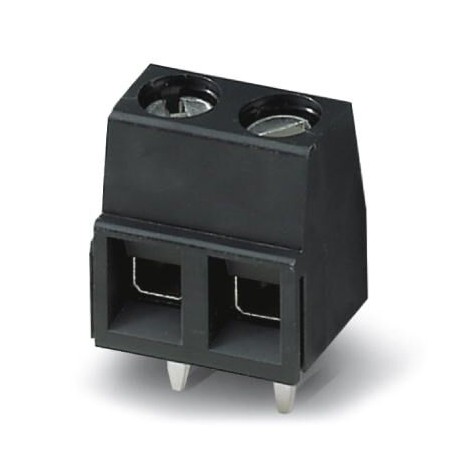

MKDSN 1,5/ 4-HT BK R44 KP 1042996 PHOENIX CONTACT PCB terminal block MKDSN 1,5/ 4-HT BK R44 KP 1042996
MKDSN 1,5/ 4-HT BK R44 KP
1042996
PHOENIX CONTACT
280 Pcs.
PCB terminal block - MKDSN 1,5/ 4-HT BK R44 KP - 1042996
Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 320 V, nominal section: 1.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, article family: MKDSN 1.5/.. -HT, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping shape: L Longitudinal slot, mounting: Weld THR, conductor connection direction/printed circuit board: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, Packing Type: 44mm Wide Strap
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², pitch: 5 mm, number of positions: 4, connection method: Screw connection with tension sleeve, mounting: THR soldering, conductor/PCB connection direction: 0 °, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1042996 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 280 pc |
| GTIN | 4055626603414 |
| Weight per Piece (excluding packing) | 0.100 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
