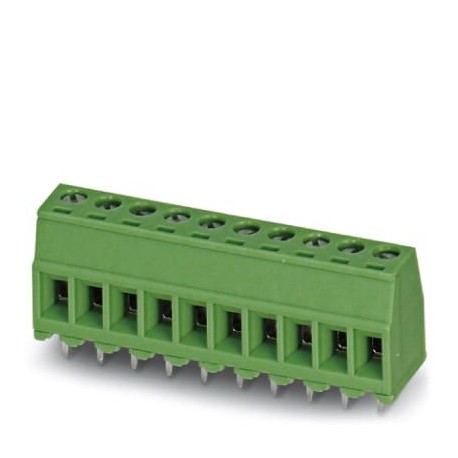

PHOENIX CONTACT MKDSD 1,5/ 2-3,81 BK MKDSD 1,5/ 2-3,81 BK 1733259 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDSD 1,5/ 2-3,81 BK 1733259 PHOENIX CONTACT PCB terminal block

MKDSD 1,5/ 2-3,81 BK

1733259

PHOENIX CONTACT

50 Pcs.

PCB terminal block Printed circuit board terminal block, rated current: 8 A, rated voltage (III/2): 320 V, rated cross-section: 1.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, article family: MKDSD 1.5, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping method: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.7 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1733259
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356164306
Weight per Piece (excluding packing)1.730 g
Custom tariff number85369010
Country of originBG (Bulgaria)

Item properties

Brief article descriptionPCB terminal block
Range of articlesMKDSD 1,5
Pitch3.81 mm
Number of positions2
Connection methodScrew connection with tension sleeve
Drive form screw headSlotted (L)
Screw threadM2
Mounting typeWave soldering
Pin layoutLinear double pinning
Number of levels1

Electrical parameters

Rated current8 A
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV

Connection capacity

Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil26 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.5 mm²
2 conductors with same cross section, solid0.14 mm² ... 0.5 mm²
2 conductors with same cross section, flexible0.14 mm² ... 0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.25 mm² ... 0.34 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 0.5 mm²
Stripping length7 mm
Torque0.22 Nm ... 0.25 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]9.3 mm
Width [ w ]8.71 mm
Height [ h ]15.3 mm
Pitch3.81 mm
Height (without solder pin)12.6 mm
Solder pin [P]2.7 mm
Pin dimensions0.5 x 0.8 mm
Dimension a3.81 mm

Dimensions for PCB design

Hole diameter1.1 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Electrical tests

Rated current8 A
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV

Air clearances and creepage distances

Insulating material groupI
Voltage200 V
Rated insulation voltage (III/3)200 V
Rated insulation voltage (III/2)320 V
Rated insulation voltage (II/2)500 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
