PHOENIX CONTACT MKDS 5N HV/ 3-ZB-6,35 BK MIXP MKDS 5N HV/ 3-ZB-6,35 BK MIXP 1711882 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

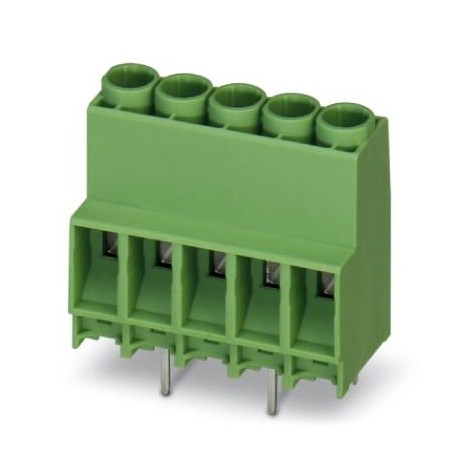

MKDS 5N HV/ 3-ZB-6,35 BK MIXP 1711882 PHOENIX CONTACT PCB terminal block

MKDS 5N HV/ 3-ZB-6,35 BK MIXP

1711882

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 41 A, nominal voltage (III/2): 400 V, nominal section: 4 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: MKDS 5 N HV, pitch: 6.35 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, Connection direction conductor/printed circuit board: 0 °, color: black, Pin arrangement: Zigzag Pins W, Pin length [P]: 5 mm, number of solder pins per potential: 1, Packaging type: Boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1711882
Packing unit1
GTIN4055626263496
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesMKDS 5 N HV
Pitch6.35 mm
Number of positions3
Connection methodScrew connection with tension sleeve
Screw threadM3
Mounting typeWave soldering
Pin layoutZigzag pinning W
Number of levels1
Number of connections3
Number of potentials3

Material data - contact

Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)

Material data - housing

Insulating materialPA
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Length [ l ]15.85 mm
Width [ w ]12.7 mm
Height [ h ]32 mm
Pitch6.35 mm
Height (without solder pin)27 mm
Solder pin [P]5 mm
Pin spacing9 mm
Dimension a6.35 mm

Dimensions for PCB design

Hole diameter1.3 mm
Pin spacing9 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (dependent on the derating curve)

Air clearances and creepage distances

Insulating material groupI

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
