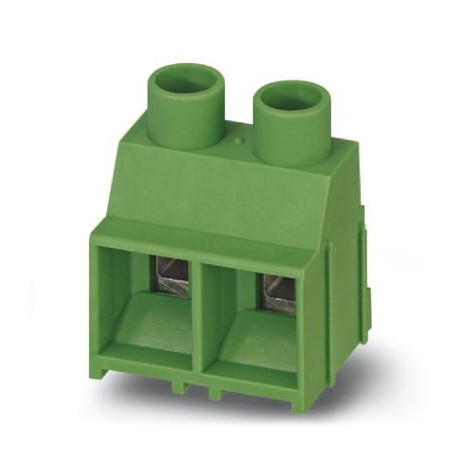

MKDS 5 HV/ 3-9,52-Z BKBDWH-W 1046624 PHOENIX CONTACT PCB terminal block, nominal current: 32 A, rated voltag..
MKDS 5 HV/ 3-9,52-Z BKBDWH-W
1046624
PHOENIX CONTACT
1000 Pcs.
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm², pitch: 9.52 mm, number of positions: 3, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 5.2 mm
Terminal block for printed circuit board, nominal current: 32 A, dimensioning voltage (III/2): 1000 V, nominal section: 4 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, family of articles: MKDS 5 HV, pitch: 9.52mm, type of connection: Screw connection with traction capsule, mounting: Wave soldering, Driver/PCB connection direction: 0°, Color: Black, Pin arrangement: Linear pin arrangement, Pin length [P]: 5.2mm, number of solder pins per potential: 1, Packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | MKDS 5 HV |
| Pitch | 9.52 mm |
| Number of positions | 3 |
| Connection method | Screw connection with tension sleeve |
| Mounting type | Wave soldering |
| Pin layout | Linear pinning |
| Number of levels | 1 |
| Number of connections | 3 |
| Number of potentials | 3 |
Connection capacity
| Connection method | Screw connection with tension sleeve |
|---|---|
| pluggable | Yes |
| Conductor cross section solid | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG / kcmil | 24 ... 10 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 4 mm² |
| 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve | 0.25 mm² ... 0.75 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| Stripping length | 8 mm |
| Torque | 0.5 Nm ... 0.6 Nm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Dimensional drawing |  |
|---|---|
| Caption | The figure shows a 3-position version |
| Length [ l ] | 16 mm |
| Width [ w ] | 28.56 mm |
| Height [ h ] | 26.7 mm |
| Pitch | 9.52 mm |
| Height (without solder pin) | 21.5 mm |
| Solder pin [P] | 5.2 mm |
| Pin dimensions | 0.9 x 0.9 mm |
| Dimension a | 19.04 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
General product information
| Type of note | Note on application |
|---|---|
| Note | For safe conductor connection, always adhere to a defined tightening torque. Particularly in the case of PCB terminal blocks with two or three positions, the individual solder pin for each contact point cannot compensate for this. That is why the terminal blocks must be supported during conductor connection (held with one hand, support on the housing). |
Electrical tests
| Rated current | 32 A |
|---|---|
| Conductor cross section | 4 mm² |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
Air clearances and creepage distances
| Rated insulation voltage (III/3) | 800 V |
|---|---|
| Rated insulation voltage (III/2) | 1000 V |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
