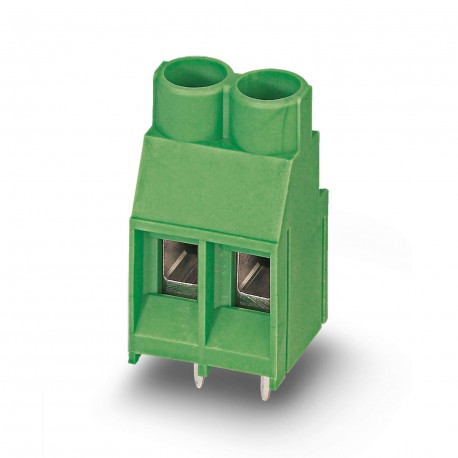

PHOENIX CONTACT MKDS 5/ 3-6,35 GY MKDS 5/ 3-6,35 GY 1030350 PHOENIX CONTACT Terminal for printed circuit board, rated voltage: 630 V, pitch: 6.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDS 5/ 3-6,35 GY 1030350 PHOENIX CONTACT Terminal for printed circuit board, rated voltage: 630 V, pitch: 6..

MKDS 5/ 3-6,35 GY

1030350

PHOENIX CONTACT

50 Pcs.

Terminal for printed circuit board, rated voltage: 630 V, pitch: 6.35 mm, number of poles: 3, type of connection: Connection by screw with capsule-traction, assembly: wave Soldering, color: gray Terminal block for printed circuit board, nominal current: 32 A, nominal voltage (III/2): 630 V, nominal section: 4 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: MKDS 5, pitch: 6.35 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, Driver/PCB connection direction: 0°, Color: gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 5.1mm, number of solder pins per potential: 1, Packaging type: boxed PCB terminal, nominal current: 32 A, reference voltage (III/2): 630 V, nominal cross-section: 4 mm2, number of potentials: 3, number of rows: 1, number of poles per row: 3, article range: MKDS 5, pitch: 6.35 mm, connection type: Screwed connection with ring, screw driving surface: L Longitudinal slot, mounting: Wave welding, Conductor/PCB Plugging Direction: 0°, Colour: Grey, Pin Layout: Linear Pinout, Spindle Length [P]: 5.1 mm, Number of Pins Per Potential: 1, Packaging Type: Packed in a Box

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info


Product TypePrinted circuit board terminal
Product rangeMKDS 5
Product LineCOMBICON Terminals L
Number of poles3
Steps6.35 mm
Number of connections3
Number of rows1
Number of potentials3
Pinout plotLinear pinout
Number of pins per potential1
Data Management Status
Revision of the article01

Rated Current IN32 A
Rated voltage UN630 V
Reference voltage (III/3)500 V
Rated Shock Resistance Voltage (III/3)6 kV
Rated Voltage (III/2)630 V
Rated Shock Withstand Voltage (III/2)6 kV
Reference voltage (II/2)1000 V
Rated Shock Withstand Voltage (II/2)6 kV

Connection technology
TypeSide-by-side PCB terminal block
Nominal cross-section4 mm²
Conductor connection
Connection typeScrewed connection with ring
Rigid conductor cross-section0.2 mm² ... 6 mm²
Soft conductor section0.2 mm² ... 4 mm²
Conductive section. AWG24 ... 10
Soft conductor section with end cap, without plastic bushing0.25 mm² ... 4 mm²
Soft conductor section with plastic end cap and socket0.25 mm² ... 4 mm²
2 rigid conductors of the same cross-section0.2 mm² ... 1.5 mm²
2 flexible conductors of the same cross-section0.2 mm² ... 1.5 mm²
2 conductors of the same cross-section, flexible with plastic sleeveless end cap0.25 mm² ... 0.75 mm²
2 flexible conductors of the same cross-section with TWIN bit and plastic socket0.5 mm² ... 2.5 mm²
Stripping length8 mm
Screw head drive shapeLongitudinal Slot (L)
Tightening torque0.5 Nm ... 0.6 Nm

Mounting TypeWave Welding
Pinout plotLinear pinout

Material indication - contact
NoteWEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface qualityGalvanic tinning
Metal surface connection point (top layer)Tin (4 - 8 μm Sn)
Metal surface, welding area (top layer)Tin (4 - 8 μm Sn)
Material indication - housing
Colors (Cases)Grey (7042)
Insulating materialPA
Insulation GroupI
CRI according to IEC 60112600
Flammability class according to UL 94V0
GWFI glow wire flammability class according to EN 60695-2-12850
GWIT glow wire ignition temperature according to EN 60695-2-13775
Ball pressure test temperature according to EN 60695-10-2125 °C

Application NoteFor the safe connection of the conductors, always observe a defined torque. Especially for two- or three-pole PCB terminal blocks, the welded individual spike is not able to withstand this for each contact point. For this reason, terminal blocks must be maintained when connecting conductors (manually fixed and housing maintained).

Dimensioned drawing
Steps6.35 mm
Width [w]19.05 mm
Height [h]26.6 mm
Length [l]12.5 mm
Mounting height21.5 mm
Welding pin length [P]5.1 mm
Dimensions of the pins0.9 x 0.9 mm
PCB design
Drilling Diameter1.3 mm

Investigation of damage and loosening of conductors
Control SpecificationDIN EN 60998-2-1 (VDE 0613-2-1):1994-04
ResultSuccessful test
Traction Control
Control SpecificationDIN EN 60998-2-1 (VDE 0613-2-1):1994-04
Conductor cross-section/conductor type/tractive force, nominal/actual0.2 mm² / rigid / > 10 N
0.2 mm² / soft / > 10 N
6 mm² / rigid / > 80 N
4 mm² / soft / > 60 N
Torque Control
Control SpecificationDIN EN 60998-2-1 (VDE 0613-2-1):1994-04

Warm-up test
Control SpecificationDIN EN 60998-2-1 (VDE 0613-2-1):1994-04
Requirement for heating controlTemperature Rise ≤ 45 K
Insulation resistance
Control SpecificationDIN EN 60998-2-1 (VDE 0613-2-1):1994-04
Insulation resistance of neighboring poles109Ω
Air Distances and Trailing Lines
Control SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation GroupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))SIC 600
Rated Insulation Voltage (III/3)500 V
Rated Shock Resistance Voltage (III/3)6 kV
minimum value of distance in air - non-homogeneous field (III/3)5.5 mm
minimum creepage value (III/3)6.3 mm
Note on the connection sectionWith 6 mm² connected conductor (rigid).
Rated Insulation Voltage (III/2)630 V
Rated Shock Voltage (III/2)6 kV
minimum value of distance in air - non-homogeneous field (III/2)5.5 mm
minimum creepage value (III/2)5.5 mm
Rated Insulation Voltage (II/2)1000 V
Rated Shock Withstand Voltage (II/2)6 kV
minimum value of distance in air - non-homogeneous field (II/2)5.5 mm
minimum creepage value (II/2)5.5 mm

Vibration Resistance Test
Control SpecificationDIN EN 60068-2-6:1996-05
Frequency10 - 150 - 10 Hz
Scan Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Inspection time per axis2.5 hrs
Sense of controlX, Y, and Z Axes
Glow Wire Test
Control SpecificationDIN EN 60998-2-1 (VDE 0613-2-1):1994-04
Temperature850 °C
Time of action5 s
Environmental conditions
Ambient Temperature (Operating)-40 °C ... 100 °C (Depending on current/derating capacitance curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C

Type of packagingpacked in a carton

ETIM for 1030350 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 26.6 mm
Number of electrical connections (EF008252) 3
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 6.35 mm
Rated current In (EF008250) 32 A
Rated voltage (EF000228) 630 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 5.1 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Carton (for SMD)
