View larger
Images are for illustrative purposes only. Please refer to data sheet for details

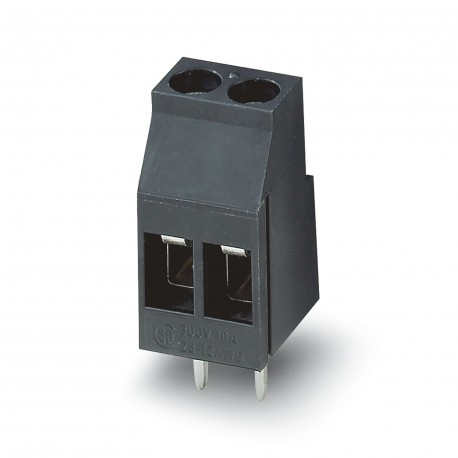

MKDS 3/ 3 HT BK VPE500 1104905 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 24 A, pi..
MKDS 3/ 3 HT BK VPE500
1104905
PHOENIX CONTACT
1000 Pcs.
Terminal for printed circuit board, nominal current: 24 A, pitch: 5 mm, number of poles: 3, type of connection: Connection by screw with capsule-traction, assembly: Soldering THR, direction for connection conductor/pcb: 0 °, color: black
Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 320 V, nominal section: 2.5 mm², number of rows: 1, number of poles per row: 3, article family: MKDS 3/.. -HT, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping shape: L Longitudinal slot, mounting: Weld THR, conductor connection direction/printed circuit board: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 5 mm, number of solder pins per potential: 1, Packing Type: Boxed Packed
PCB terminal block, rated current: 24 A, sizing voltage (III/2): 320 V, nominal cross-section: 2.5 mm2, number of rows: 1, number of poles per row: 3, product series: MKDS 3/.. -HT, pitch: 5 mm, connection type: Screw connection with cage, screw attachment form: L Longitudinal slot, mounting: TTHR / wave soldering, conductor/board connection direction: 0°, color: black, Pin layout: Linear pinning, Pin length [P]: 5 mm, number of solder pins per potential: 1, Package type: packed in carton
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Type | PCB terminal block |
| Product Family | MKDS 3/.. -HT |
| Product Line | COMBICON Terminals M |
| Number of poles | 3 |
| Step | 5 mm |
| Number of rows | 1 |
| Pin Layout | Linear Pinning |
| Number of Welding Pins per Potential | 1 |
| Data maintenance status | |
| Article review | 00 |
| Rated Current IN | 24 A |
| Rated voltage UN | 320 V |
| Sizing voltage (III/3) | 200 V |
| Sizing impulse voltage (III/3) | 4 kV |
| Sizing voltage (III/2) | 320 V |
| Sizing Impulse Voltage (III/2) | 4 kV |
| Sizing voltage (II/2) | 320 V |
| Sizing Impulse Voltage (II/2) | 4 kV |
| Connection technology | |
| type | Block of terminal blocks for printed circuit boards |
| Nominal cross-section | 2.5 mm² |
| Conductor connection | |
| Link | Screw connection with cage |
| Rigid conductor cross-section | 0.2 mm² ... 4 mm² |
| Flexible conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 2.5 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 1.5 mm² |
| 2 conductors of identical cross-section, rigid | 0.2 mm² ... 1.5 mm² |
| 2 conductors of identical flexible cross-section | 0.2 mm² ... 1.5 mm² |
| 2 conductors of the same flexible cross-section with ferrule without plastic collar | 0.25 mm² ... 0.75 mm² |
| 2 conductors of identical cross-section flexible with TWIN ferrule with plastic collar | 0.5 mm² ... 1.5 mm² |
| Length of the section to be stripped | 8 mm |
| Appliance type screw head | Longitudinal slit (L) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Mounting type | TTHR / wave soldering |
| Pin Layout | Linear Pinning |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Hot-dip galvanizing |
| Metal Surface, Connection Point (Surface Layer) | Tin (4 - 8 μm Sn) |
| Metal Surface Welding Area (Surface Layer) | Tin (4 - 8 μm Sn) |
| Material information - case | |
| Color (Case) | Black (9005) |
| Insulation material | PA |
| Insulation Material Group | IIIa |
| CTI according to IEC 60112 | 250 - 399 |
| Combustibility class according to UL 94 | V0 |
| Note for use | A predefined tightening torque must always be observed for secure connection. Especially in the case of two- and three-pole PCB terminals, the single contact soldering tip may not block them. For this reason, the terminals must be reinforced when connecting (fixed by hand, reinforcement on the housing). |
| Dimensioned Drawing |  |
| Step | 5 mm |
| Width [w] | 15 mm |
| Height [h] | 23 mm |
| Length [l] | 11.2 mm |
| Installation Height | 18 mm |
| Weld Shank Length [P] | 5 mm |
| Shank sizes | 0.9 x 0.9 mm |
| Printed circuit board design | |
| Shank Distance | 5 mm |
| Bore diameter | 1.3 mm |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Tensile test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 4 mm² / rigid / > 60 N | |
| 2.5 mm² / flexible / > 50 N | |
| Ambient Temperature Test | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Heating verification requirement | The sum of the ambient temperature and the heating of the PCB terminal should not exceed the upper limit of the temperature. |
| Short-term current resistance | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60947-1 (VDE 0660-100):2015-09 |
| Insulation Material Group | IIIa |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 250 - 399 |
| Rated insulation voltage (III/3) | 200 V |
| Rated impulse voltage (III/3) | 4 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 3 mm |
| Minimum creepage value (III/3) | 3.2 mm |
| Rated Isolation Voltage (III/2) | 320 V |
| Rated impulse voltage (III/2) | 4 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 3 mm |
| Minimum creepage value (III/2) | 3.2 mm |
| Rated Isolation Voltage (II/2) | 320 V |
| Rated Impulse Voltage (II/2) | 4 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 3 mm |
| Minimum creepage value (II/2) | 3.2 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Test Directions | X, Y, and Z axis |
| Glow Wire Test | |
| Test Specification | DIN EN 60695-2-10 (VDE 0471-2-10):2014-04 |
| Temperature | 850 °C |
| Duration of application | 5 s |
| Aging | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (Depending on current flow curve/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 23 mm |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 24 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.2 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
