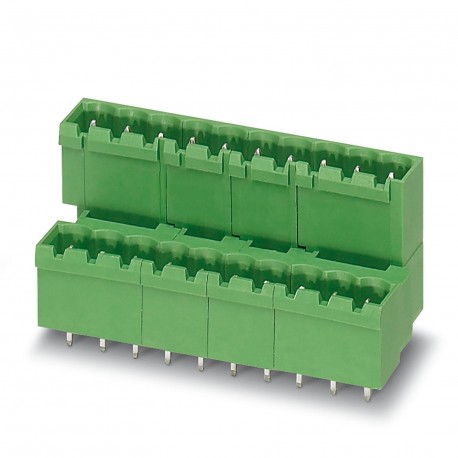

PHOENIX CONTACT MDSTBVA 2,5/16-G-5,08 BUBD:M17 MDSTBVA 2,5/16-G-5,08 BUBD:M17 1708958 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MDSTBVA 2,5/16-G-5,08 BUBD:M17 1708958 PHOENIX CONTACT Feed-through header

MDSTBVA 2,5/16-G-5,08 BUBD:M17

1708958

PHOENIX CONTACT

1000 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 2.5 mm², color: blue, nominal current: 10 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Male, Number of potentials: 32, Number of rows: 2, Number of poles per row: 16, number of connections: 32, family of articles: MDSTBVA 2.5/.. -G, pitch: 5.08 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, Stecksystem: CLASSIC COMBICON,Locking: without, packaging type: boxed Printed circuit board base housing, nominal section: 2.5 mm2, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Male, number of potentials: 32, number of rows: 2, number of poles: 16, number of connections: 32, article family: MDSTBVA 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1708958
Packing unit1
GTIN4055626027760
Custom tariff number85366930

Dimensions

Length [ l ]23.7 mm
Width85.82 mm
Pitch5.08 mm
Dimension a76.2 mm
Width [ w ]85.82 mm
Height [ h ]25.9 mm
Height22 mm
Length of the solder pin3.9 mm
Pin dimensions1 x 1 mm
Length23.7 mm

General

Range of articlesMDSTBVA 2,5/..-G
Rated voltage (III/3)250 V
Connection in acc. with standardEN-VDE
Nominal current IN10 A
Colorblue
Number of positions16

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
