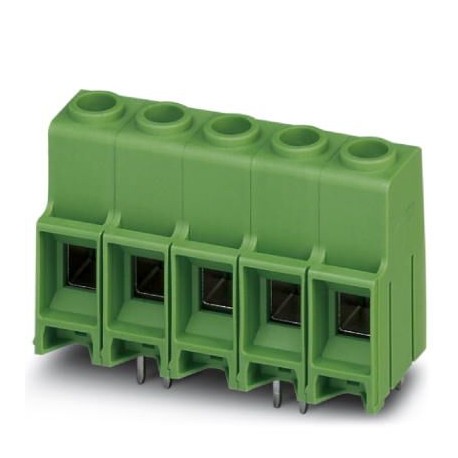

MKDS 10 HV/ 8-ZF-10,16 H1L 1818452 PHOENIX CONTACT PCB terminal block, nominal current: 76 A, nom. voltage: ..

MKDS 10 HV/ 8-ZF-10,16 H1L

1818452

PHOENIX CONTACT

50 Pcs.

PCB terminal block, nominal current: 76 A, nom. voltage: 1000 V, pitch: 10.16 mm, number of positions: 8, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green Terminal block for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal cross-section: 16 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, article family: MKDS 10 HV, pitch: 10.16 mm, connection type: Screw connection with traction capsule, screw clamping method: H1L Philipps-Recess with longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Zigzag Pins M, Pin length [P]: 5 mm, number of soldering pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 76 A, nom. voltage: 1000 V, pitch: 10.16 mm, number of positions: 8, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green

Key Commercial Data

Orderkey1818452
Packing unit1
GTIN4046356768368
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesMKDS 10 HV
Pitch10.16 mm
Number of positions8
Connection methodScrew connection with tension sleeve
Drive form screw headPhilipps recess with slotted Torx (H1L)
Screw threadM4
Mounting typeWave soldering
Pin layoutZigzag pinning M
Number of levels1
Number of connections8
Number of potentials8

Electrical parameters

Rated current76 A
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV

Connection capacity

Conductor cross section solid0.5 mm² ... 16 mm²
Conductor cross section flexible0.5 mm² ... 16 mm²
Conductor cross section AWG / kcmil20 ... 6
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 16 mm²
2 conductors with same cross section, solid0.5 mm² ... 6 mm²
2 conductors with same cross section, flexible0.5 mm² ... 6 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.5 mm² ... 4 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 6 mm²
Stripping length10 mm
Torque1.2 Nm ... 1.5 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer)Nickel (2 - 3 µm Ni)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer)Nickel (2 - 3 µm Ni)

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions for the product

Dimensional drawing
CaptionSchematic representation – for additional information, see product range drawing in the Download Center
Length [ l ]18.7 mm
Width [ w ]81.28 mm
Height [ h ]35.8 mm
Pitch10.16 mm
Height (without solder pin)30.8 mm
Solder pin [P]5 mm
Pin dimensions1 x 0.9 mm
Dimension a71.12 mm

Dimensions for PCB design

Hole diameter1.5 mm

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C (Depending on the current carrying capacity/derating curve)

Termination and connection method

Connection testIEC 60998-2-2:2002-12
Test resultTest passed
Test for conductor damage and slackeningIEC 60998-1:2002-12
Test passed

Pull-out test

Pull-out testIEC 60998-2-1:2002-12
Test passed
Conductor cross section / conductor type / tensile force0.5 mm² / solid / stranded / > 20 N
10 mm² / flexible / > 90 N
16 mm² / solid / > 100 N

Electrical tests

Rated current76 A
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV

Air clearances and creepage distances

Insulating material groupI
Rated insulation voltage (III/3)800 V
Rated insulation voltage (III/2)1000 V
Rated insulation voltage (II/2)1000 V
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV

Vibration test

Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of waterTest passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 %
Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Resistance to ageing, humidity and penetration of solids

Test resultTest passed
Test specificationIEC 60998-1:2002-12
Dry heat168 h/100°C
Humid heat48 h/30 °C/92 %

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 4.027141109
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127261100
eCl@ss 6.027261100
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643
ETIM 7.0EC002643

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432

Product Datasheet
