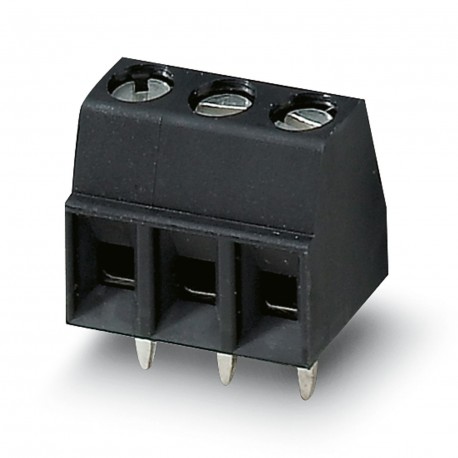

PHOENIX CONTACT MKDS 1/ 6-3,81 HT BK P1,65 MKDS 1/ 6-3,81 HT BK P1,65 1005620 PHOENIX CONTACT Terminal for printed circuit board, rated voltage: 200 V,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDS 1/ 6-3,81 HT BK P1,65 1005620 PHOENIX CONTACT Terminal for printed circuit board, rated voltage: 200 V,..

MKDS 1/ 6-3,81 HT BK P1,65

1005620

PHOENIX CONTACT

120 Pcs.

Terminal for printed circuit board, rated voltage: 200 V, pitch: 3,81 mm, number of poles: 6, type of connection: Connection by screw with capsule-traction, assembly: Soldering THR, color: black Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 200 V, nominal section: 1.5 mm², number of potentials: 6, number of rows: 1, number of poles per row: 6, family of articles: MKDS 1/.. -HT, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Weld THR, conductor/printed circuit board connection direction: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 1.65 mm, number of solder pins per potential: 1, Packing Type: Boxed Packed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Terminal for printed circuit board, rated voltage: 200 V, pitch: 3,81 mm, number of poles: 6, type of connection: Connection by screw with capsule-traction, assembly: Soldering THR, color: black

Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 200 V, nominal section: 1.5 mm², number of potentials: 6, number of rows: 1, number of poles per row: 6, family of articles: MKDS 1/.. -HT, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Weld THR, conductor/printed circuit board connection direction: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 1.65 mm, number of solder pins per potential: 1, Packing Type: Boxed Packed

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
