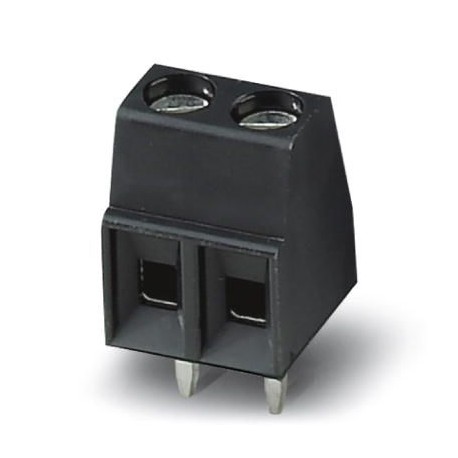

PHOENIX CONTACT MKDS 1/ 4-3,81 HTBKR24 BDGN/RD MKDS 1/ 4-3,81 HTBKR24 BDGN/RD 1933561 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKDS 1/ 4-3,81 HTBKR24 BDGN/RD 1933561 PHOENIX CONTACT PCB terminal block

MKDS 1/ 4-3,81 HTBKR24 BDGN/RD

1933561

PHOENIX CONTACT

350 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 200 V, nominal section: 1.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, family of articles: MKDS 1/.. -HT, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping shape: L Longitudinal slot, mounting: Weld THR, conductor/printed circuit board connection direction: 0 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.6 mm, number of potential solder pins: 1, Packing Type: 24mm Wide Strap

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1933561
Packing unit350 pc
Minimum order quantity350 pc
GTIN4017918904173
Weight per Piece (excluding packing)3.210 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]7.3 mm
Pitch3.81 mm
Dimension a11.43 mm
Width [ w ]15.23 mm
Height8.5 mm
Height [ h ]11.1 mm
Solder pin [P]2.6 mm
Pin spacing3.5 mm
Hole diameter1.1 mm

General

Range of articlesMKDS 1/..-HT
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)63 V
Rated voltage (III/2)200 V
Rated voltage (II/2)200 V
Connection in acc. with standardEN-VDE
Nominal current IN13.5 A
Nominal cross section1 mm²
Insulating materialPA
Solder pin surface
Stripping length5 mm
Number of positions4
Screw threadM2
Tightening torque, min0.22 Nm
Tightening torque max0.25 Nm

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.16
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.0.5 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.34 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
