View larger
Images are for illustrative purposes only. Please refer to data sheet for details

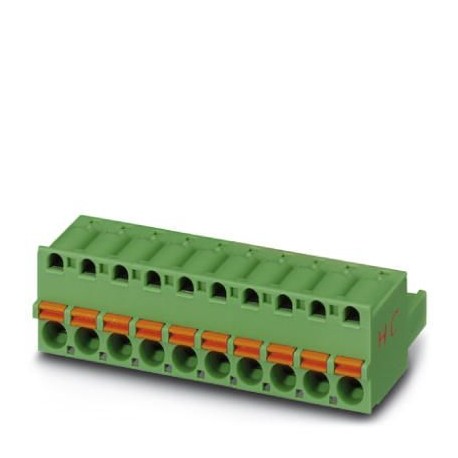

FKC 2,5 HC/ 9-ST-5,08 BD:1-9SO 1714328 PHOENIX CONTACT Printed-circuit board connector
FKC 2,5 HC/ 9-ST-5,08 BD:1-9SO
1714328
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 16 A, dimensioning voltage (III/2): 320 V, contact surface: Tin, contact type: Female connection, number of potentials: 9, number of rows: 1, number of poles: 9, number of connections: 9, family of articles: FKC 2.5 HC/.. -ST, pitch: 5.08 mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0 °, Clamping hook: - Clamping hook, plug-in system: POWER COMBICON 2.5, Locking: without, fixing type: without, packaging type: boxed
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Range of articles | FKC 2,5 HC/..-ST |
|---|---|
| Number of positions | 9 |
| Connection method | Push-in spring connection |
| Insulating material group | I |
| Rated voltage (III/2) | 320 V |
| Nominal current IN | 16 A |
| Nominal cross section | 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
