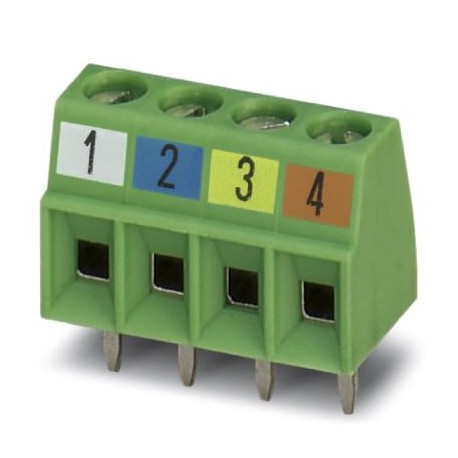

MKDS 1/ 4-3,5 PROFINET 2 1050488 PHOENIX CONTACT PCB terminal block MKDS 1/ 4-3,5 PROFINET 2 1050488
MKDS 1/ 4-3,5 PROFINET 2
1050488
PHOENIX CONTACT
180 Pcs.
PCB terminal block - MKDS 1/ 4-3,5 PROFINET 2 - 1050488
Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 200 V, nominal cross-section: 1.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, article family: MKDS 1 PROFINET, pitch: 3.5 mm, connection type: Screw connection with traction capsule, screw clamping method: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed. The PCB terminal block meets the requirements of the CAT5-compliant "Guideline for PROFINET" version 05/2017
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲PCB terminal block, nominal current: 13.5 A, nom. voltage: 200 V, pitch: 3.5 mm, number of positions: 4, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green. PCB terminal block satisfies the requirements of the “Guideline for PROFINET” in the edition dated 05/2017
Key Commercial Data
| Orderkey | 1050488 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626669304 |
| Custom tariff number | 85369010 |
Dimensions
| Length [ l ] | 7.3 mm |
|---|---|
| Pitch | 3.5 mm |
| Dimension a | 10.5 mm |
| Width [ w ] | 14.5 mm |
| Height | 8.5 mm |
| Height [ h ] | 12 mm |
| Solder pin [P] | 3.5 mm |
| Hole diameter | 1.1 mm |
General
| Range of articles | MKDS 1 PROFINET |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated voltage (III/3) | 160 V |
| Rated voltage (III/2) | 200 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 13.5 A |
| Nominal cross section | 1.5 mm² |
| Insulating material | PA |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Stripping length | 5 mm |
| Number of positions | 4 |
| Screw thread | M2 |
| Tightening torque, min | 0.22 Nm |
| Tightening torque max | 0.25 Nm |
Connection data
| Conductor cross section solid min. | 0.14 mm² |
|---|---|
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 0.5 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 0.5 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 16 |
| 2 conductors with same cross section, solid min. | 0.14 mm² |
| 2 conductors with same cross section, solid max. | 0.5 mm² |
| 2 conductors with same cross section, stranded min. | 0.14 mm² |
| 2 conductors with same cross section, stranded max. | 0.34 mm² |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261100 |
|---|---|
| eCl@ss 6.0 | 27261100 |
| eCl@ss 7.0 | 27440401 |
| eCl@ss 8.0 | 27440401 |
| eCl@ss 9.0 | 27440401 |
ETIM
| ETIM 5.0 | EC002643 |
|---|---|
| ETIM 6.0 | EC002643 |
| ETIM 7.0 | EC002643 |
